Engine
EngineEngine Control - P0331 Knock Sensor 2 Circuit Range/Performance (Bank 2) Scantool DiagnosticsMonitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC).
2.
IG "ON".
3.

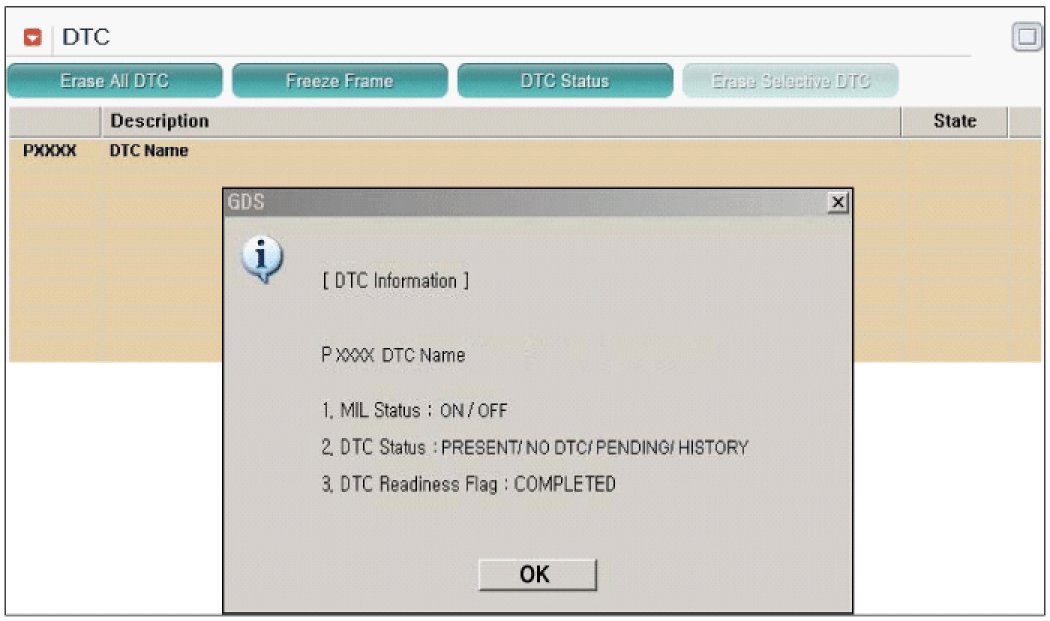

Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4.
Read "DTC Status" parameter.
5.
Is parameter displayed "Present fault"?
