Component Inspection

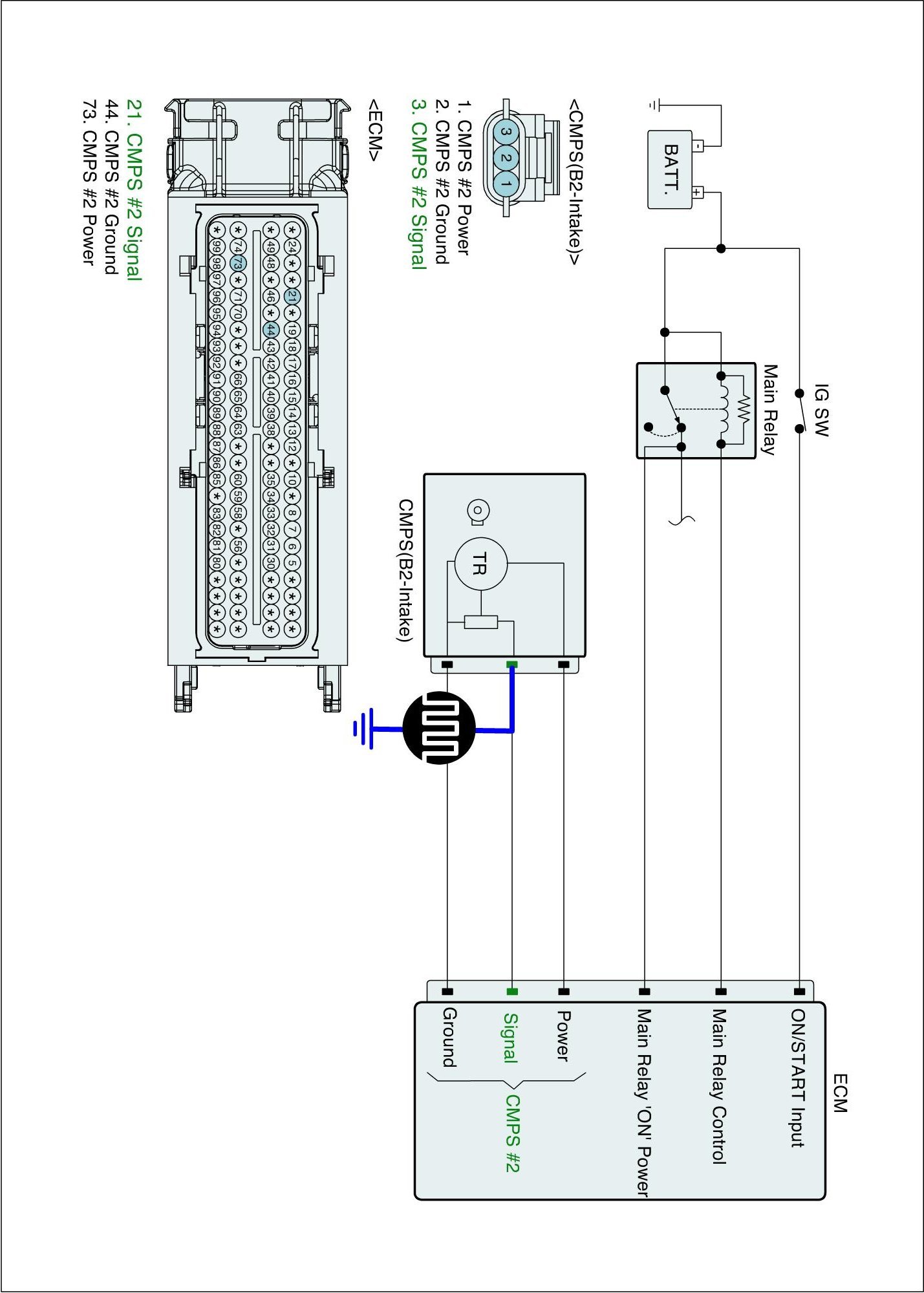

EngineEngine Control - P0346 Camshaft Position Sensor A Circuit Range/Performance (Bank 2) Component InspectionComponent InspectionCheck CMPS 1.
IG "OFF" and connect scantool.
2.
ENG "ON" and Measure signal waveform at signal terminal of CMPS.

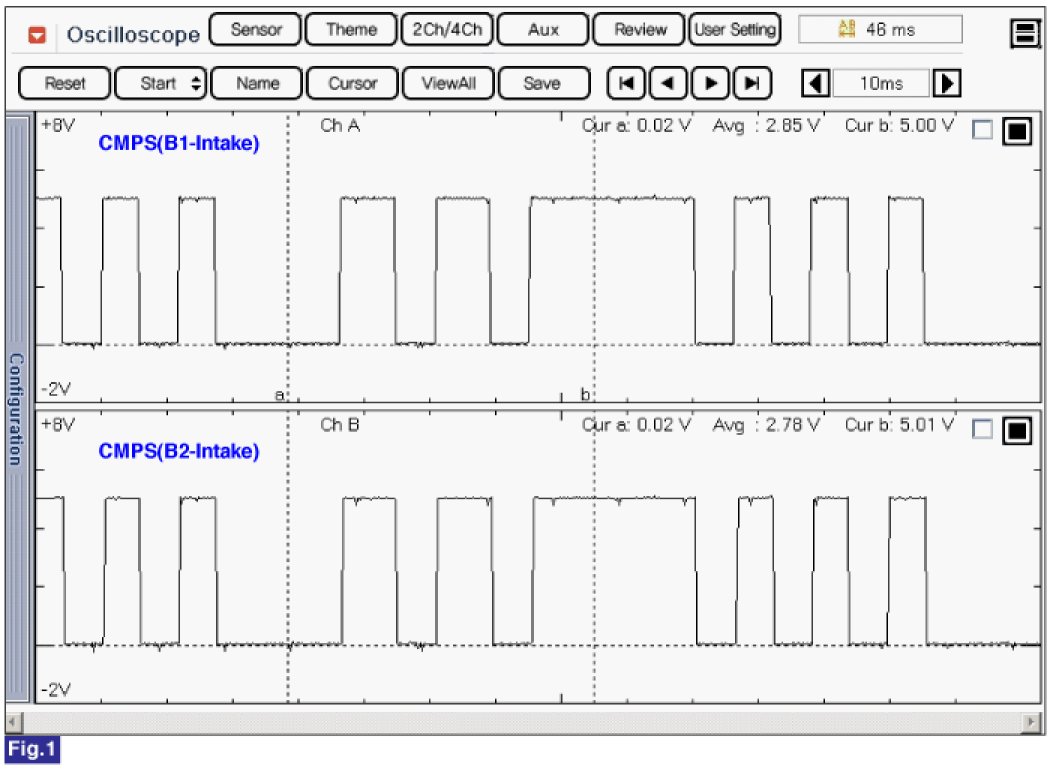

Reference signal waveform : Fig.1) Normal waveform of CMPS1 & 2 at idle.
3.
Is the measured signal waveform normal?
