Component Inspection

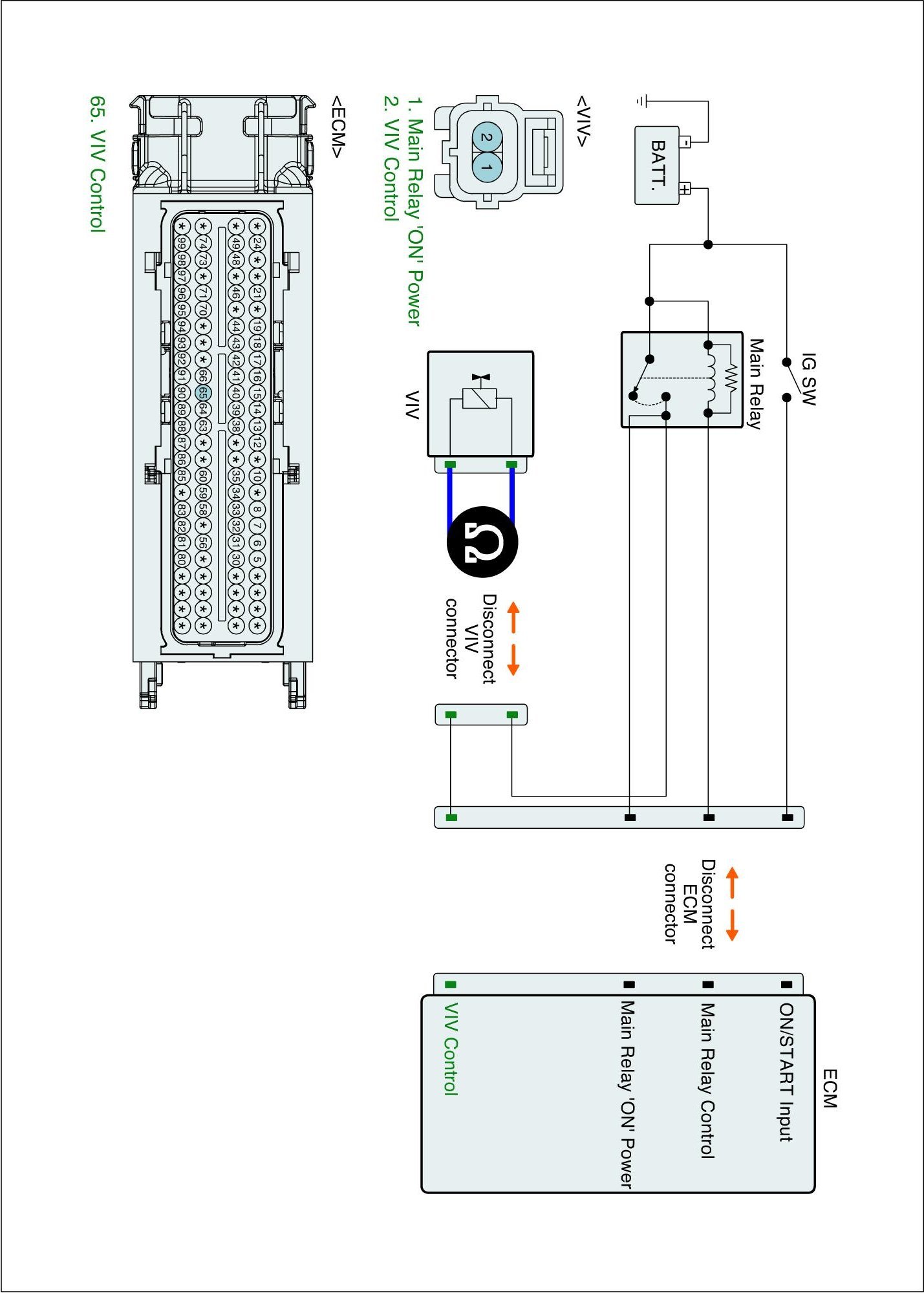

EngineEngine Control - P0660 Intake Manifold Tuning Valve Control Circuit/Open (Bank 1) Component InspectionComponent InspectionCheck VIV 1.
IG "OFF" and disconnect VIV connector.
2.
Measure resistance between power and control terminals of VIV connector. (Component side)
Specification : 30 - 35 Ohms (22 °C/71.6 °F) 3.
Is the measured resistance within specification?
