Repair Procedures





Inspection

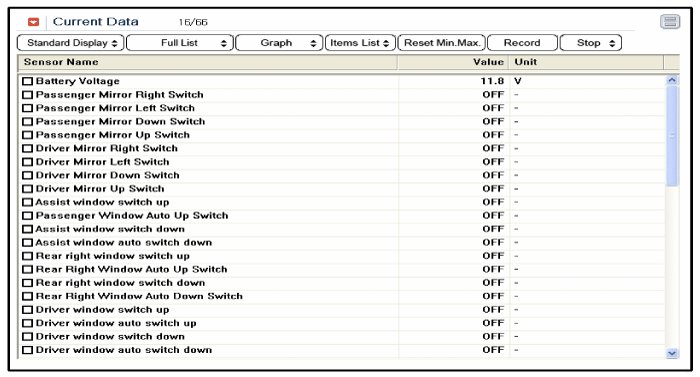

1. The DDM inputs can be checked using the GDS.
2. To check the input value of door lock switch, select option "IPM".
3. Select option "DDM (Driver Door Module)".
4. Select option "Input/Output monitoring".

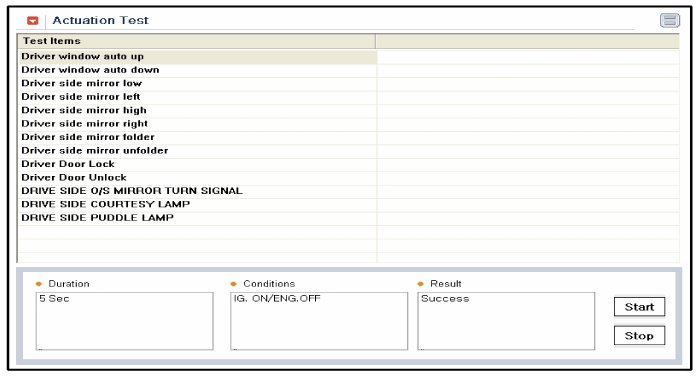

5. To check the input value of door lock switch in force mode, select option "ACTUATION TEST".






Removal

Driver Power Mirror Switch
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.
3. Disconnect the DDM module connector (A).




4. Remove the DDM module with power mirror switch after loosening the mounting screws.










Installation

1. Install the DDM module.
2. Install the front door trim.
