Repair Procedures

Removal

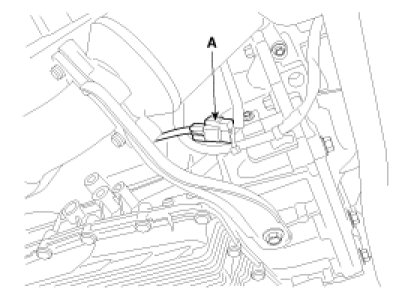

1. Disconnect the rear oxygen sensor (HO2S) connector (A) on LH and RH side.

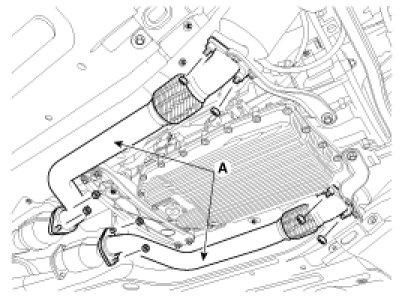

2. Remove the front muffler (A) on LH and RH side.

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)

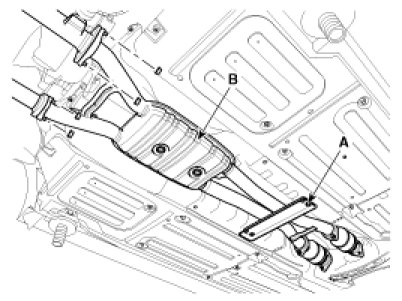

3. Remove the center muffler (B) after removing the tunnel stay (A).

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)

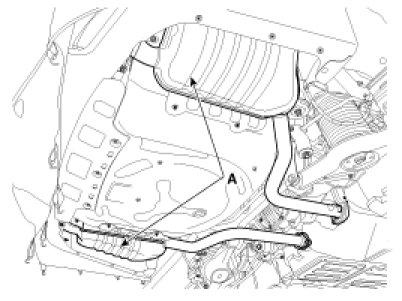

4. Remove the main muffler (A).

5. Installation is reverse order of removal.
