Electrical Diagrams

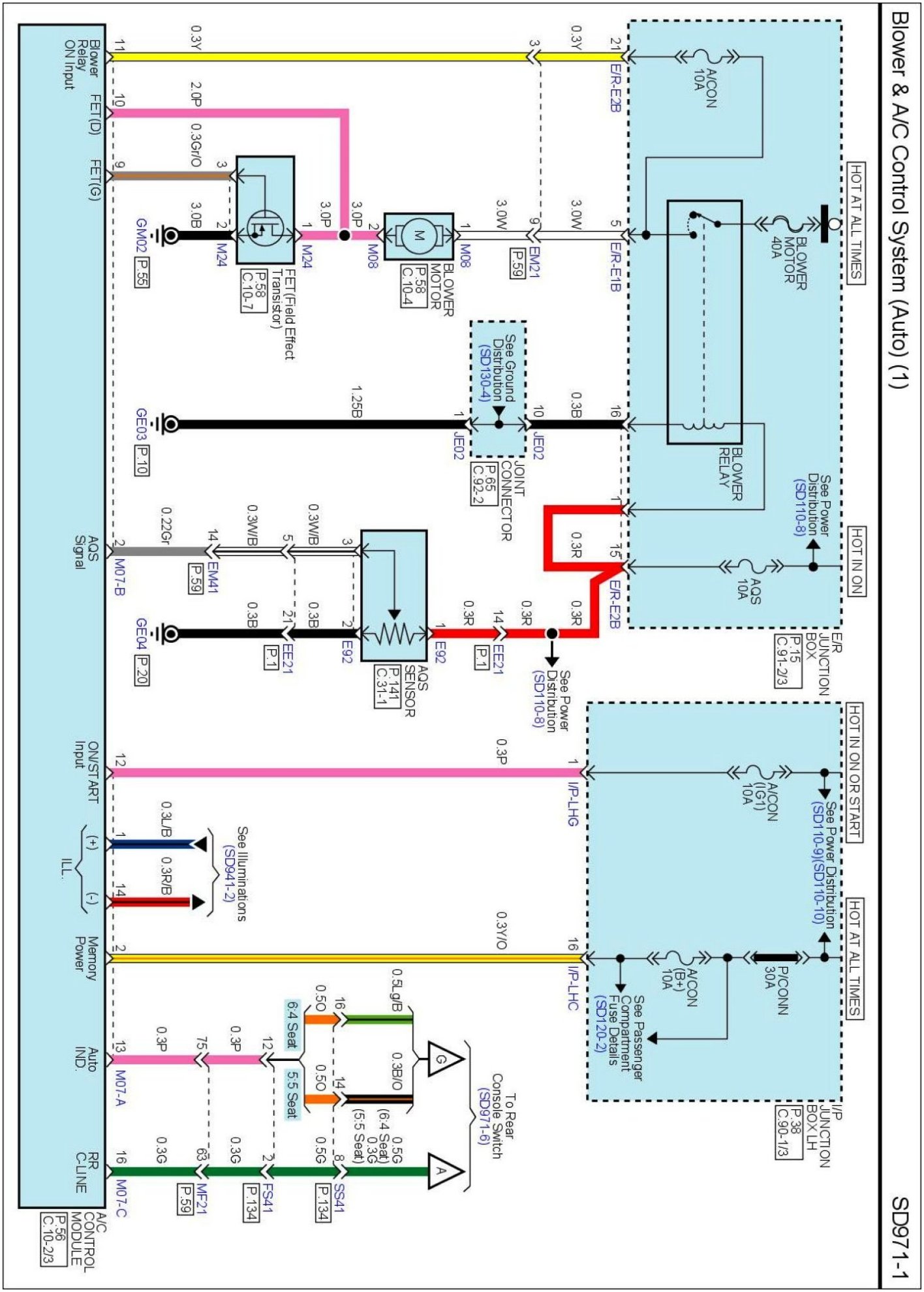

SD971-1 Blower & A/C Control System (Auto) (1):

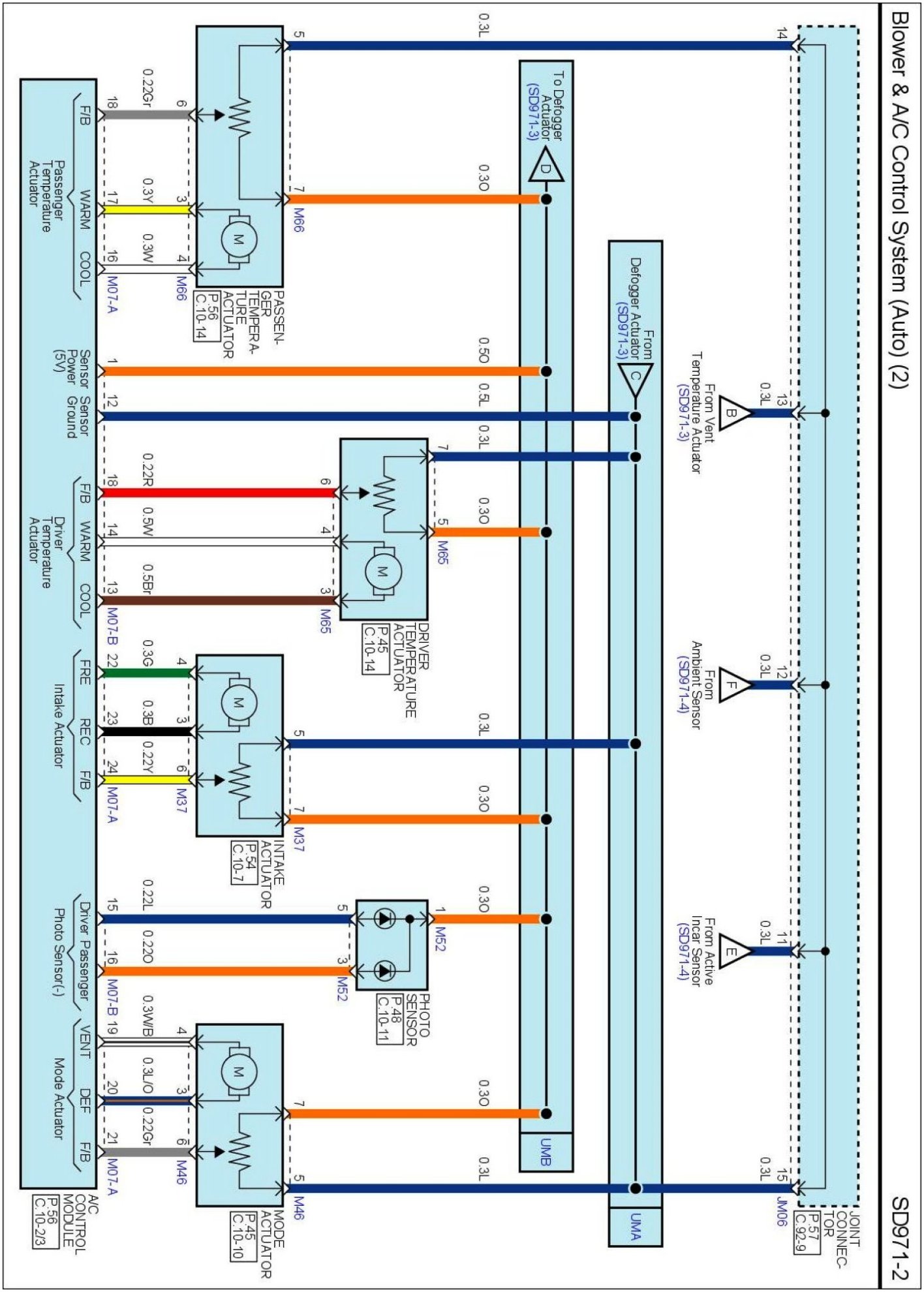

SD971-2 Blower & A/C Control System (Auto) (2):

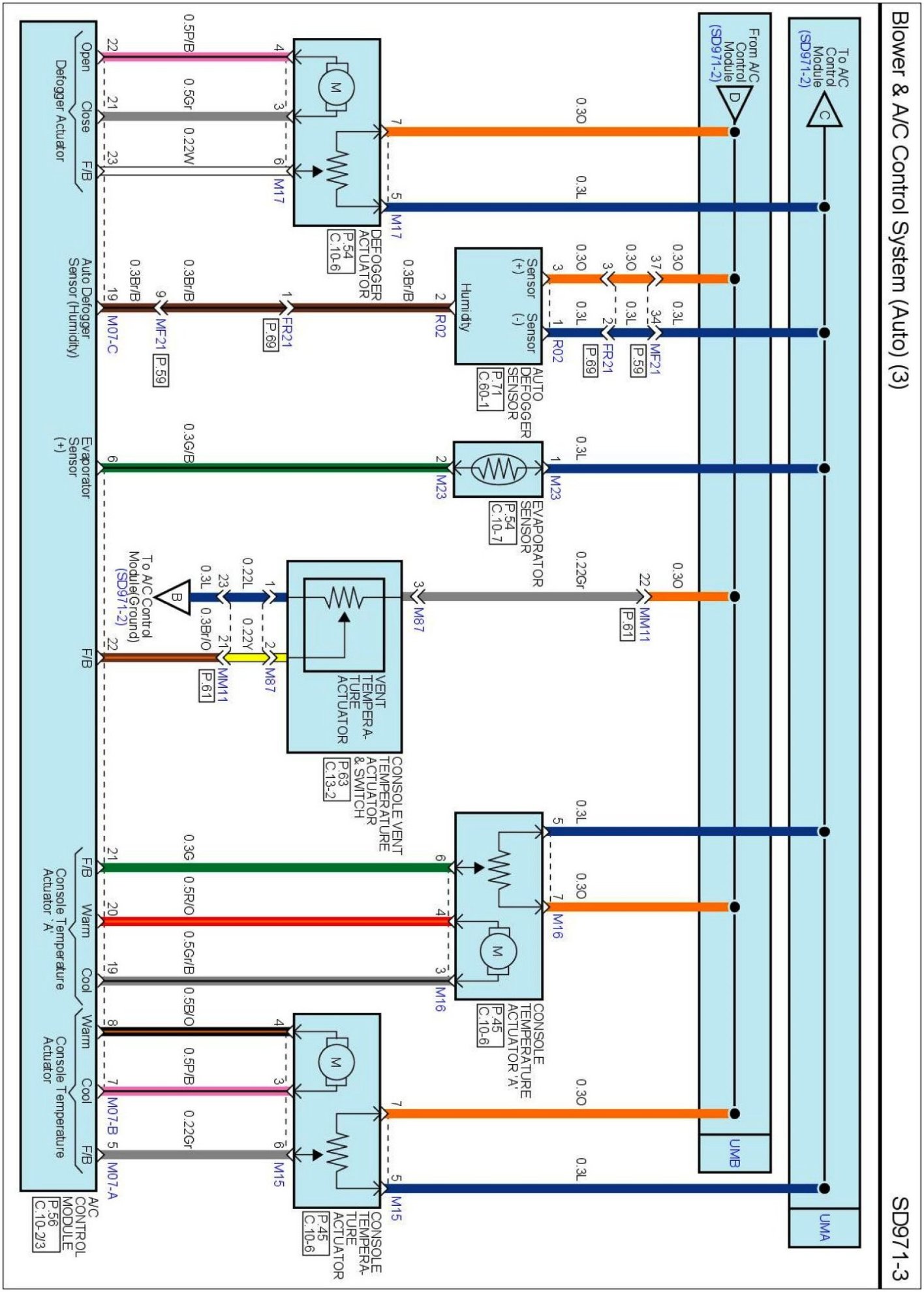

SD971-3 Blower & A/C Control System (Auto) (3):

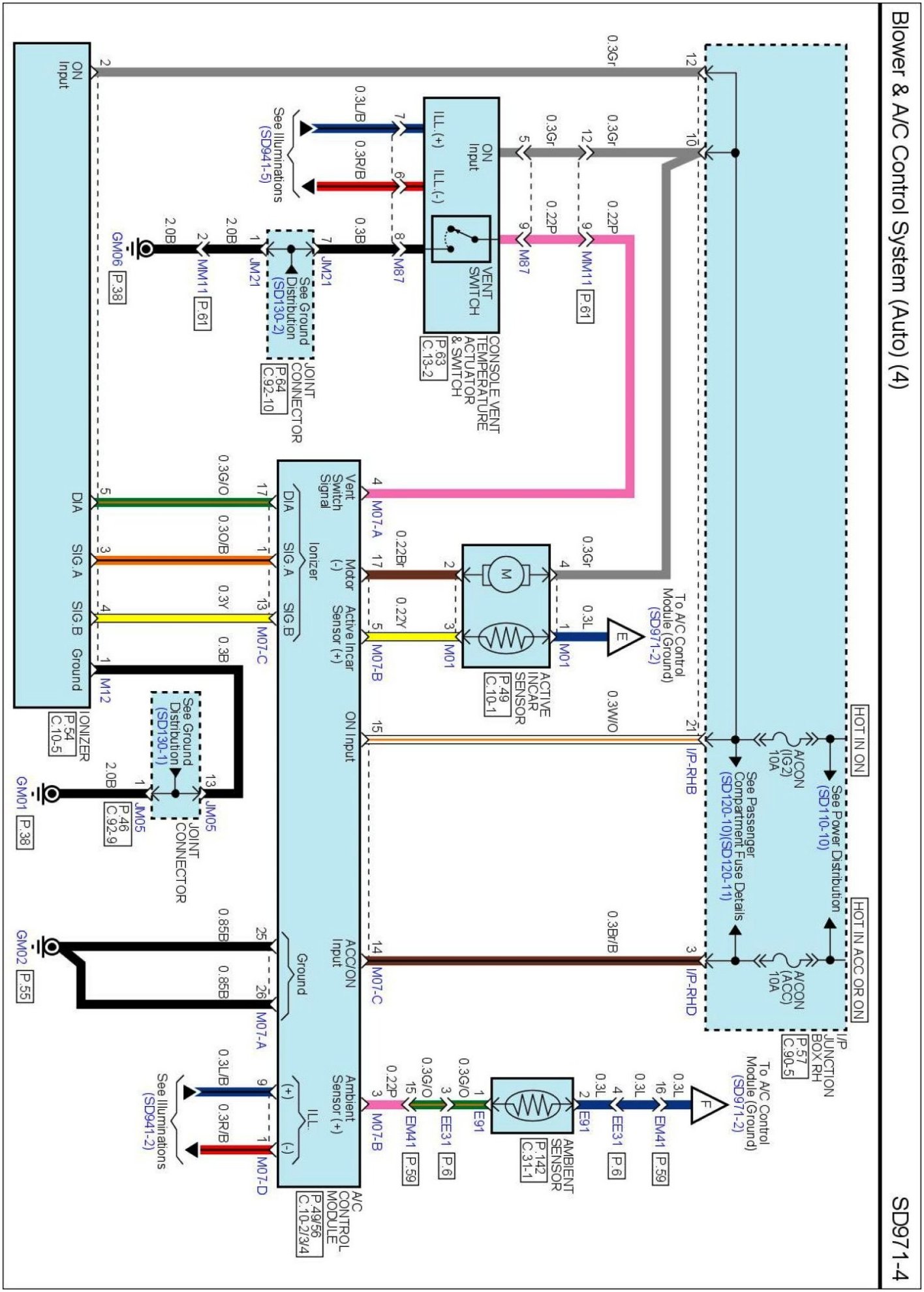

SD971-4 Blower & A/C Control System (Auto) (4):

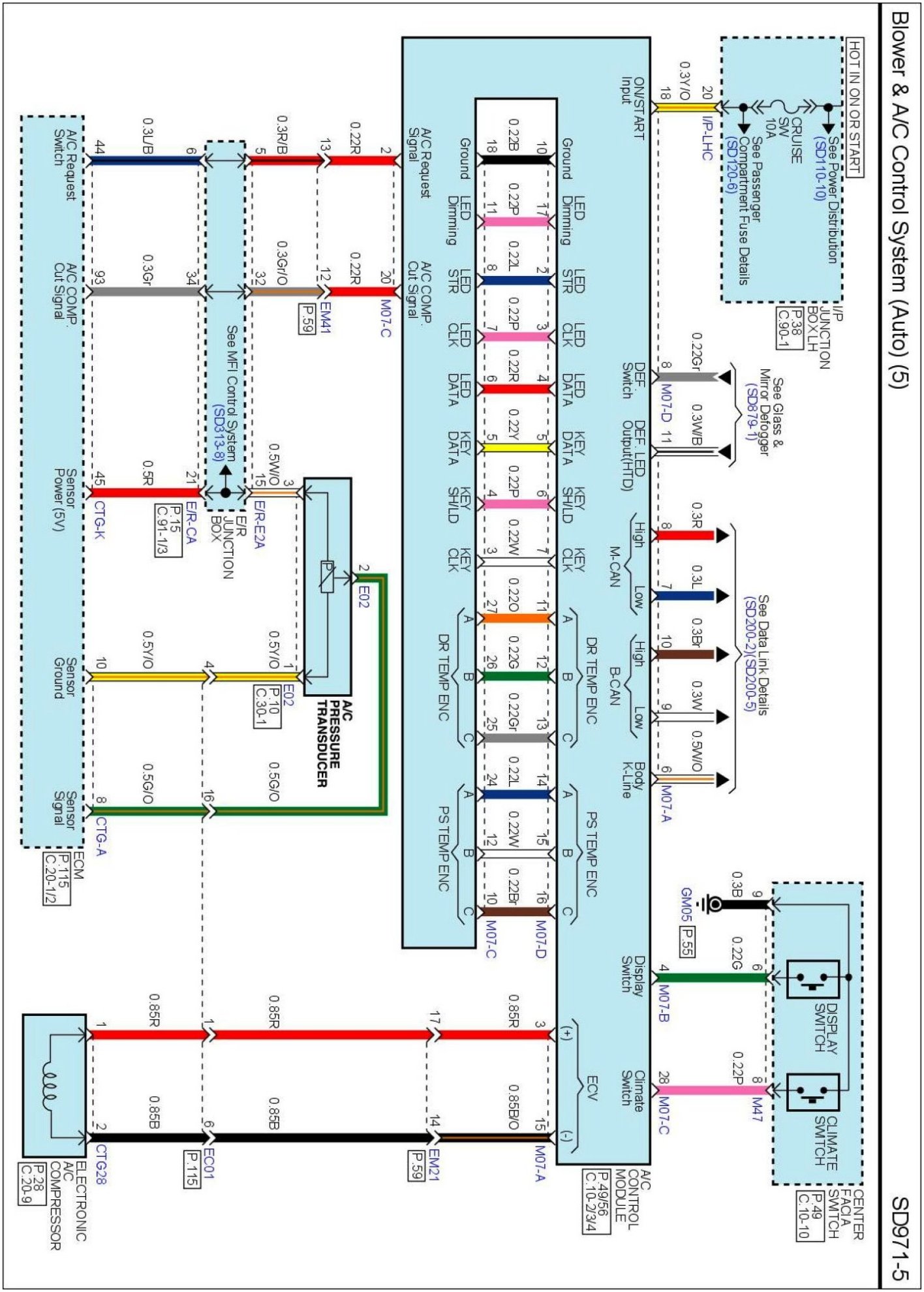

SD971-5 Blower & A/C Control System (Auto) (5):

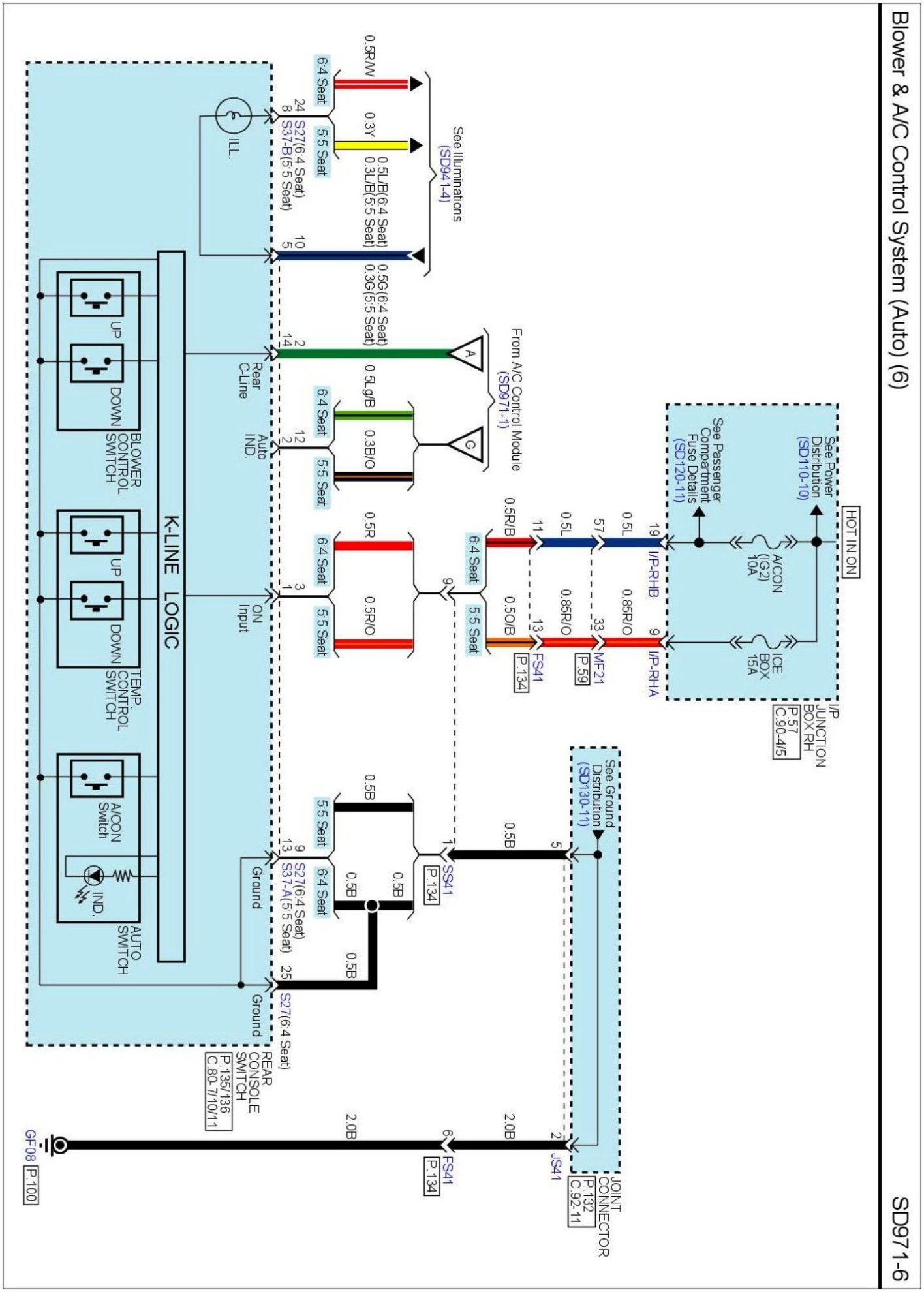

SD971-6 Blower & A/C Control System (Auto) (6):
Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.)
within these diagrams can be found at Diagrams by Number. Diagram By Number
Locations: Location photographs (references to PHOTOS) referred to within
these diagrams can be found via the photo number at the vehicle level under
Locations by Photo Number. Locations By Photo Number
