Fuel Pump: Service and Repair





Removal

1. Preparation
(1) Remove the rear seat cushion .

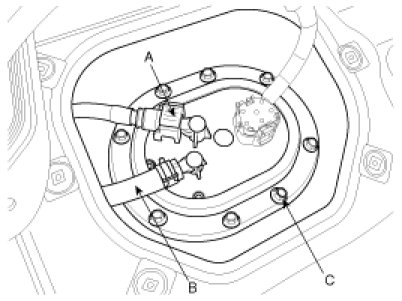

(2) Remove the service cover of the fuel pump (A).




(3) Disconnect the fuel pump connector (A).




(4) Idle the engine and wait until fuel in feed line is exhausted.
(5) After engine stops, turn the ignition switch OFF.
2. Disconnect the fuel feed tube quick-connector (A) and the suction hose (B).




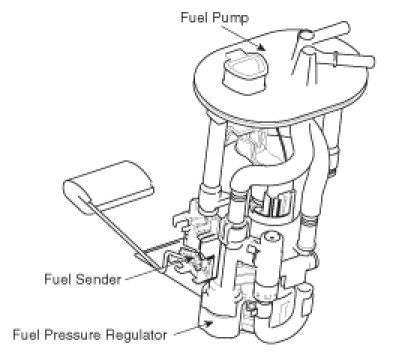

3. Remove the fuel pump from the fuel tank after removing the installation bolts (C).






Installation

1. Installation is reverse of removal.

Fuel pump installation bolt :
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lbf.ft)

CAUTION:
When installing the fuel pump module, be careful not to get the seal-ring entangled.
