Fog/Driving Lamp: Testing and Inspection
InspectionRear Fog Lamp Switch 1.
Disconnect the negative (-) battery terminal.
2.

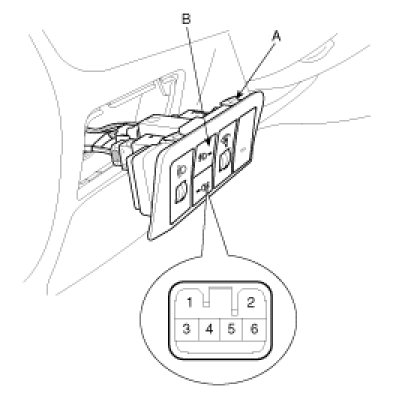

Remove the lower crash pad switch (A) from the side crash pad cover by using a trim removal tool and then disconnect the connectors.
3.
Remove the rear fog lamp (B) switch from lower crash pad switch.
4.

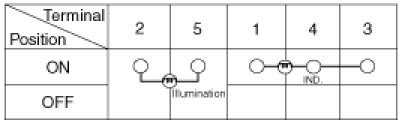

Check for continuity between the terminals in each switch position according to the table.
