Fuel Pressure: Specifications
Fuel Pressure TestStart the engine and measure the
fuel pressure at idle.
Fuel Pressure 379.5 kPa (3.87 kgf/cm2, 55.0 psi)

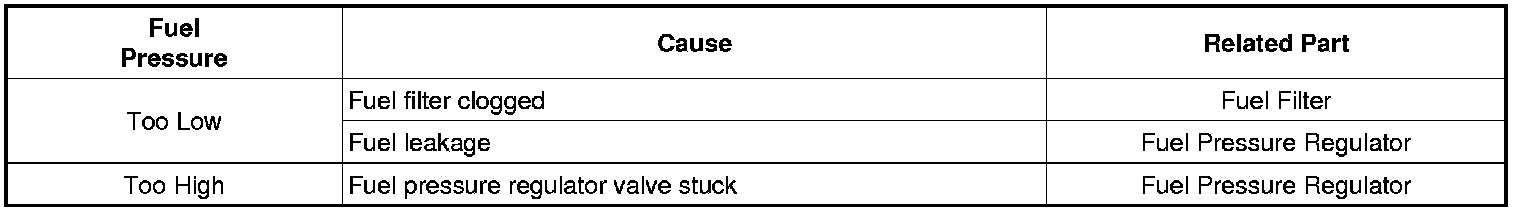

NOTE: If the
fuel pressure differs from the standard value, repair or replace the related part .
