Hybrid Systems - Overview And Features

Group: GENERAL INFORMATION

Number: 11-GI-001

Date: JANUARY 2011

Subject
INTRODUCTION TO SONATA (YF) HEV SYSTEM -
MAIN FEATURES AND DRIVING MODES

1. DESCRIPTION:

This bulletin provides general information about the main features and driving modes of the SONATA (YF) HEV (Hybrid Electric Vehicle).

What is HEV (Hybrid Electric Vehicle)?

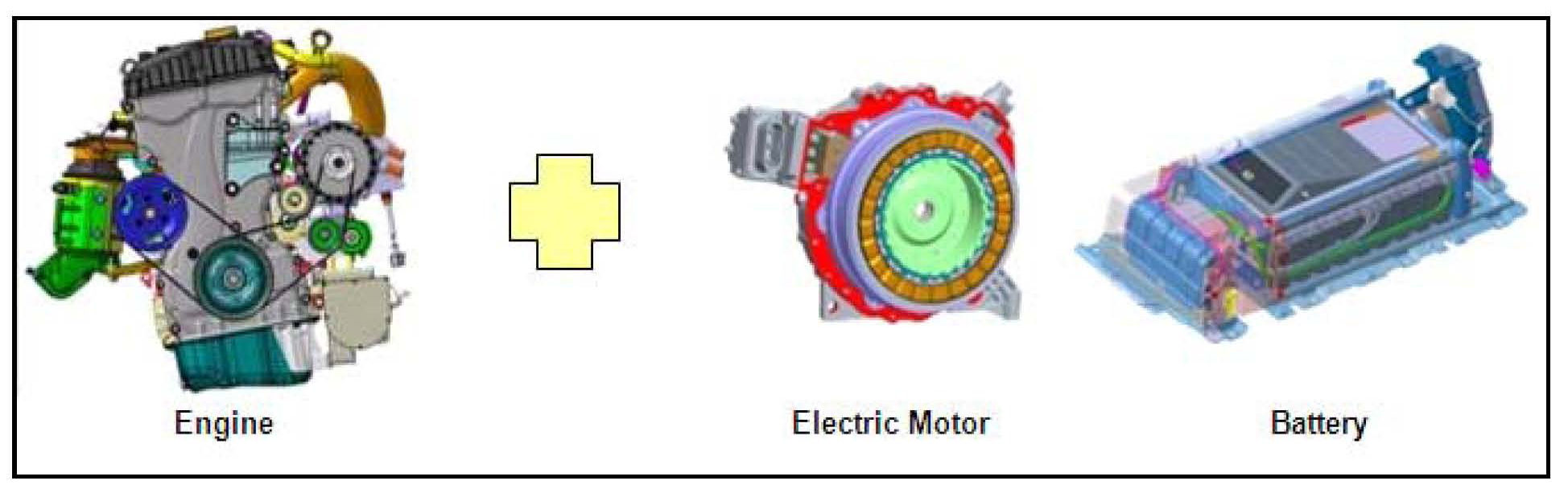

A vehicle that receives propulsion energy from two or more vehicle energy sources generally consisting of an internal combustion engine (gasoline), battery and electric motor.

2. INTRODUCTION OF YF HEV SYSTEM:

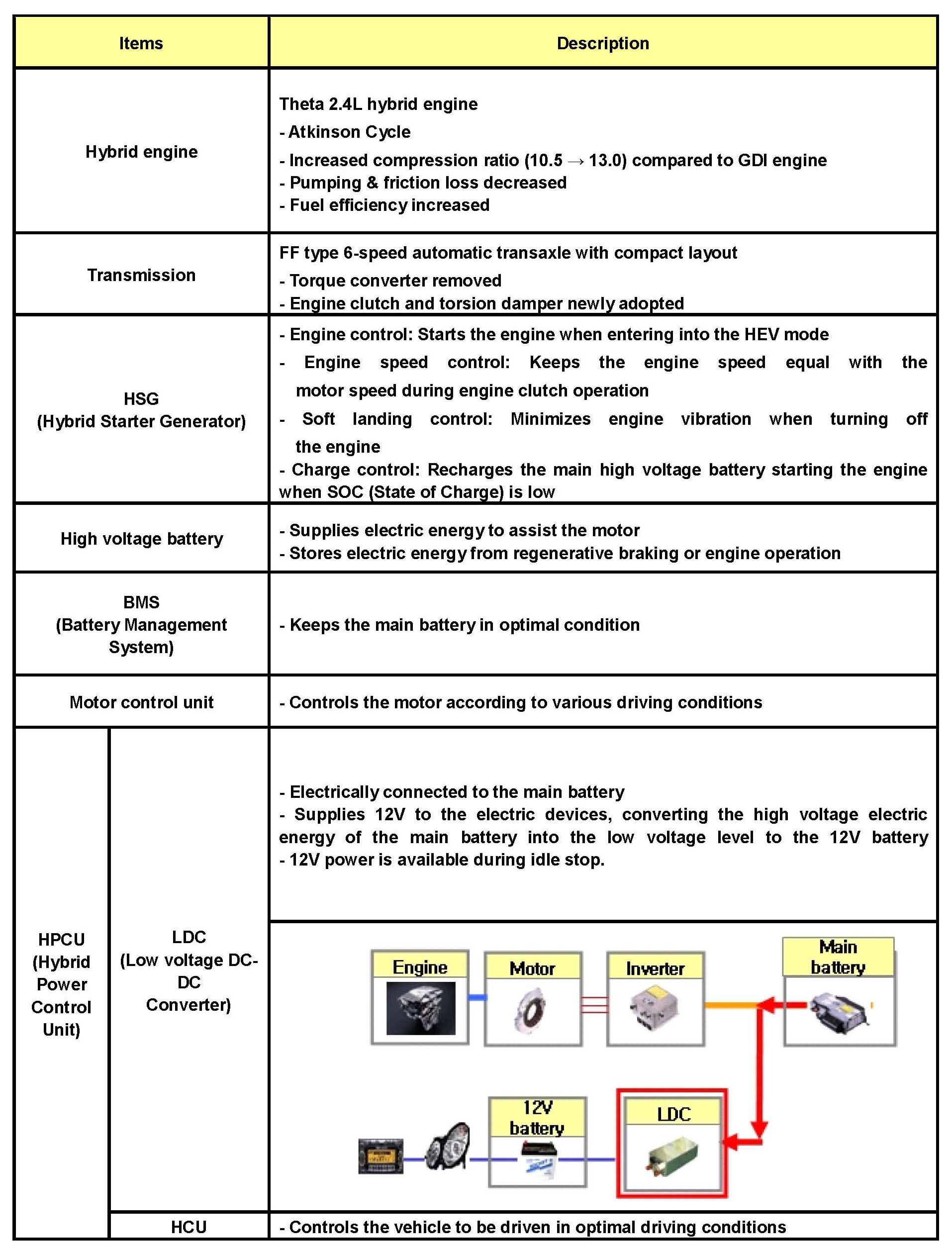

The following are the features of the Sonata HEV:

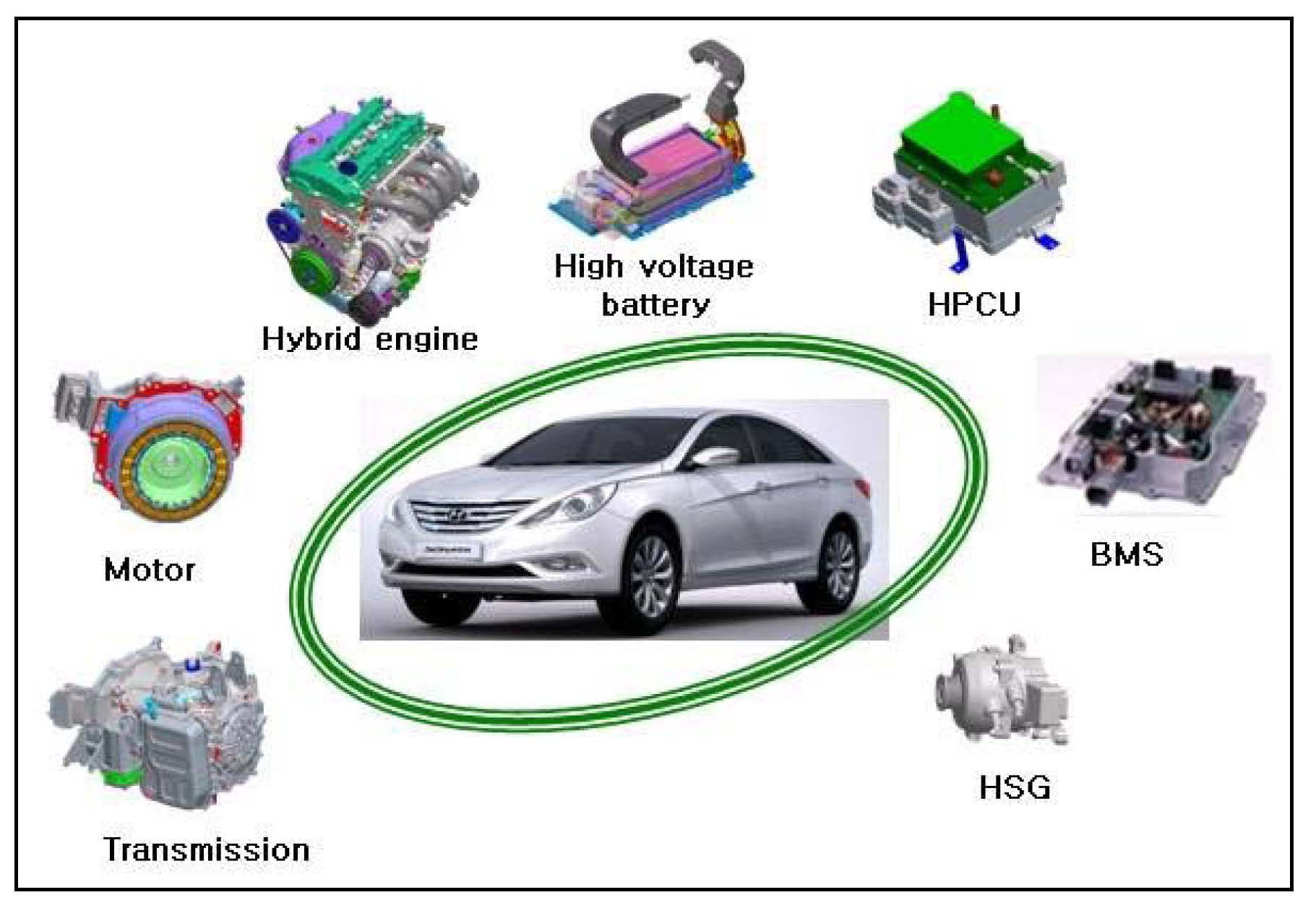

1) System Configuration

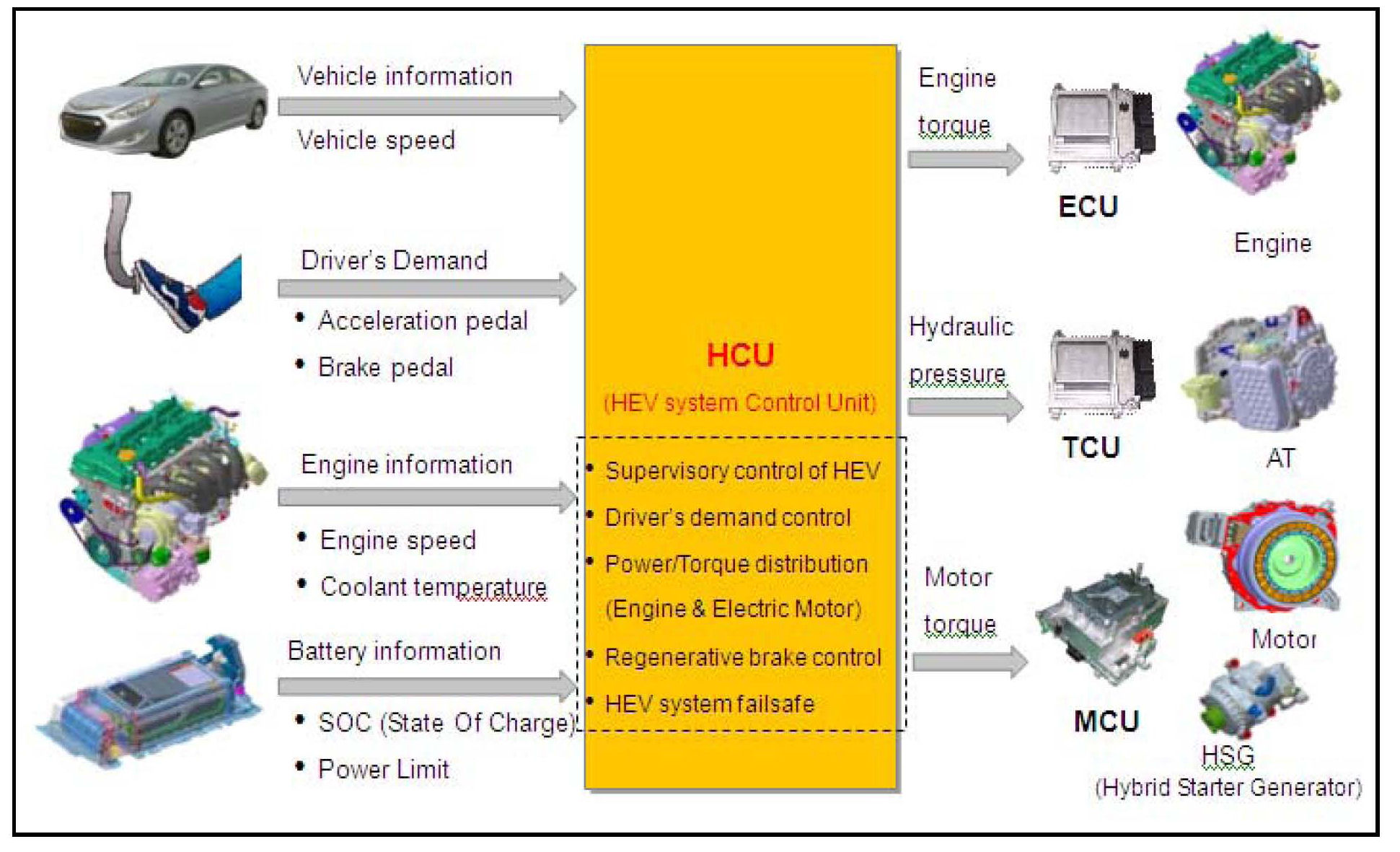

2) Input & Output of HEV Control Unit (HCU)

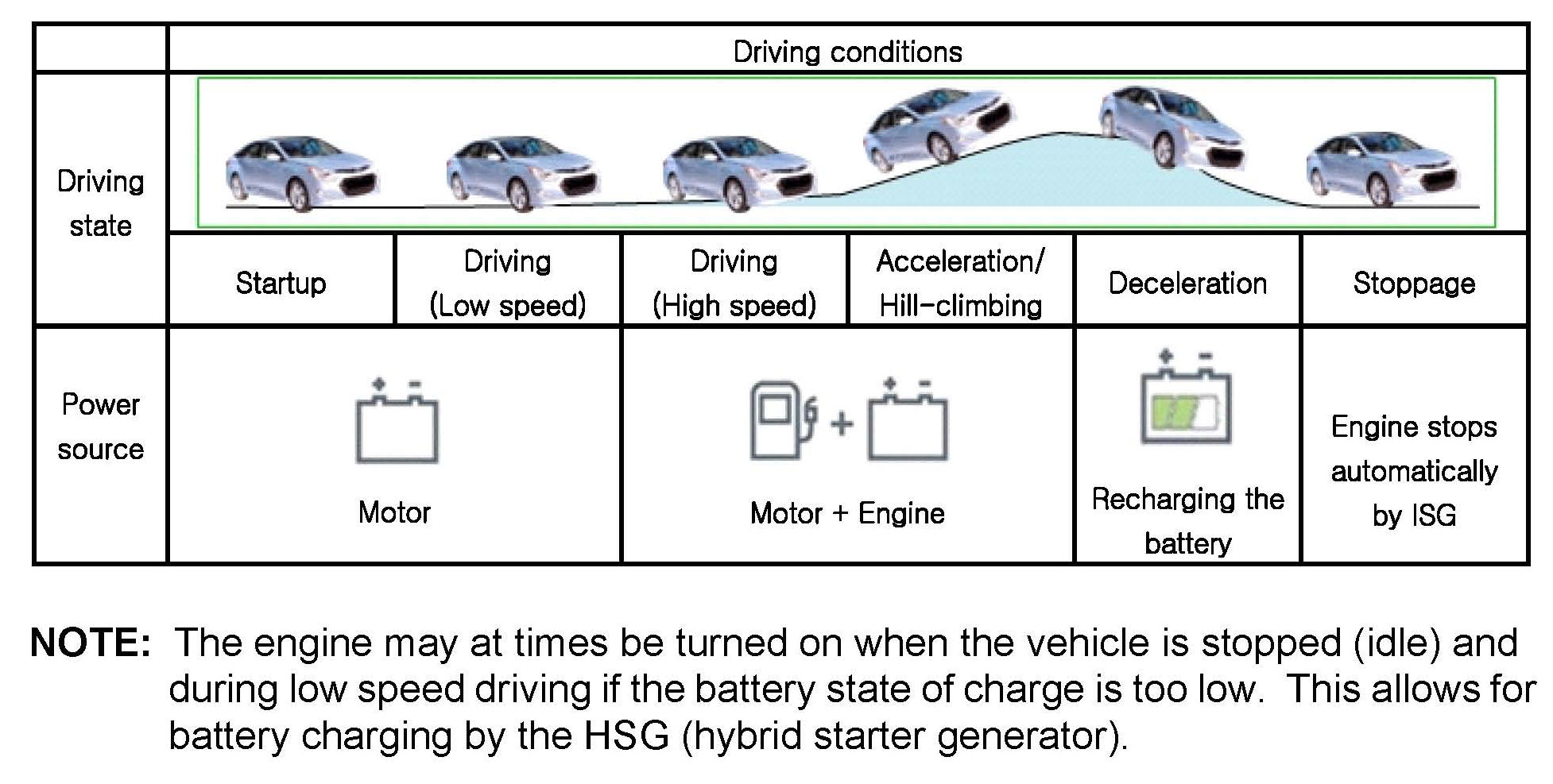

3. DRIVING MODES:

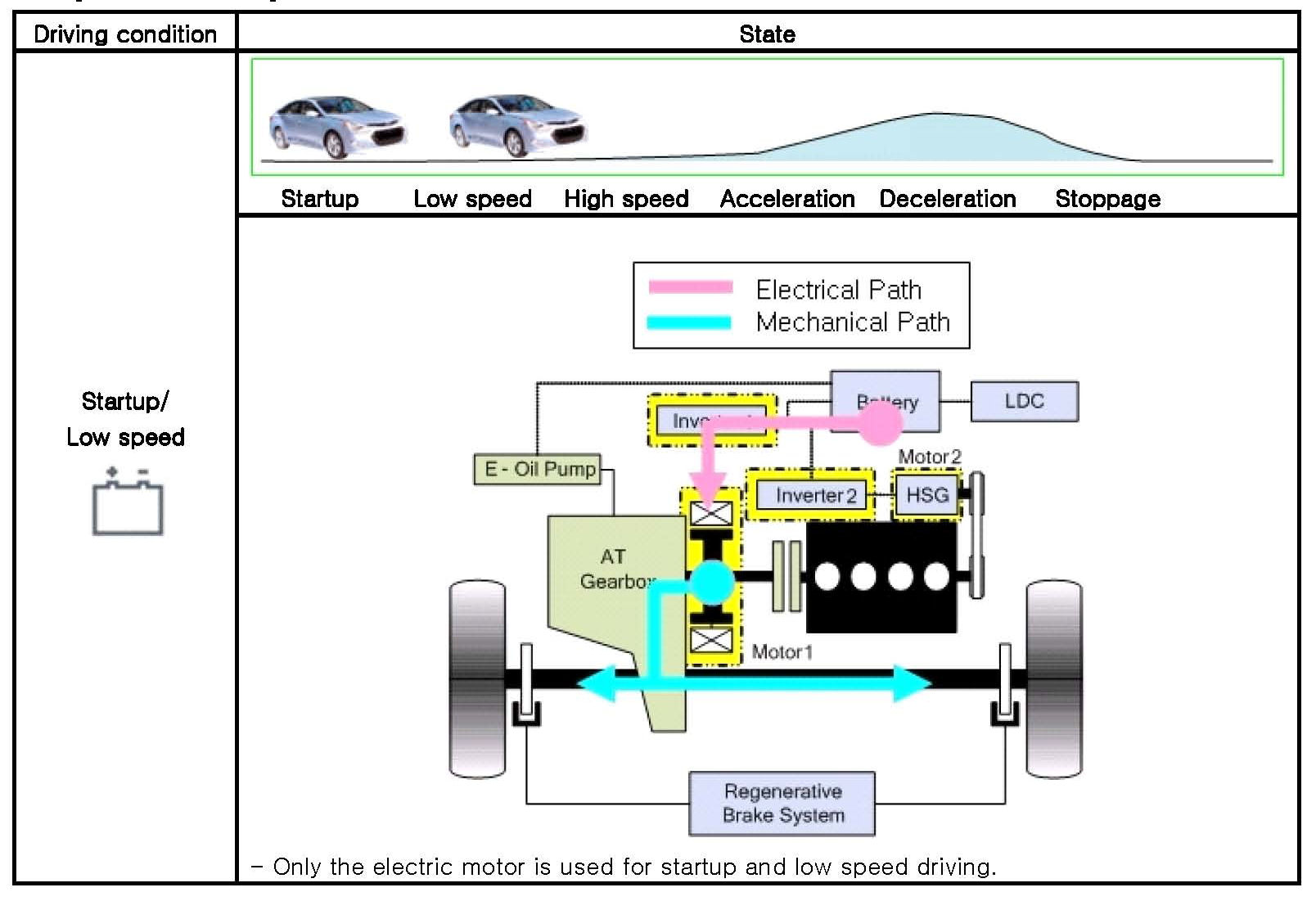

1) Startup & Low speed

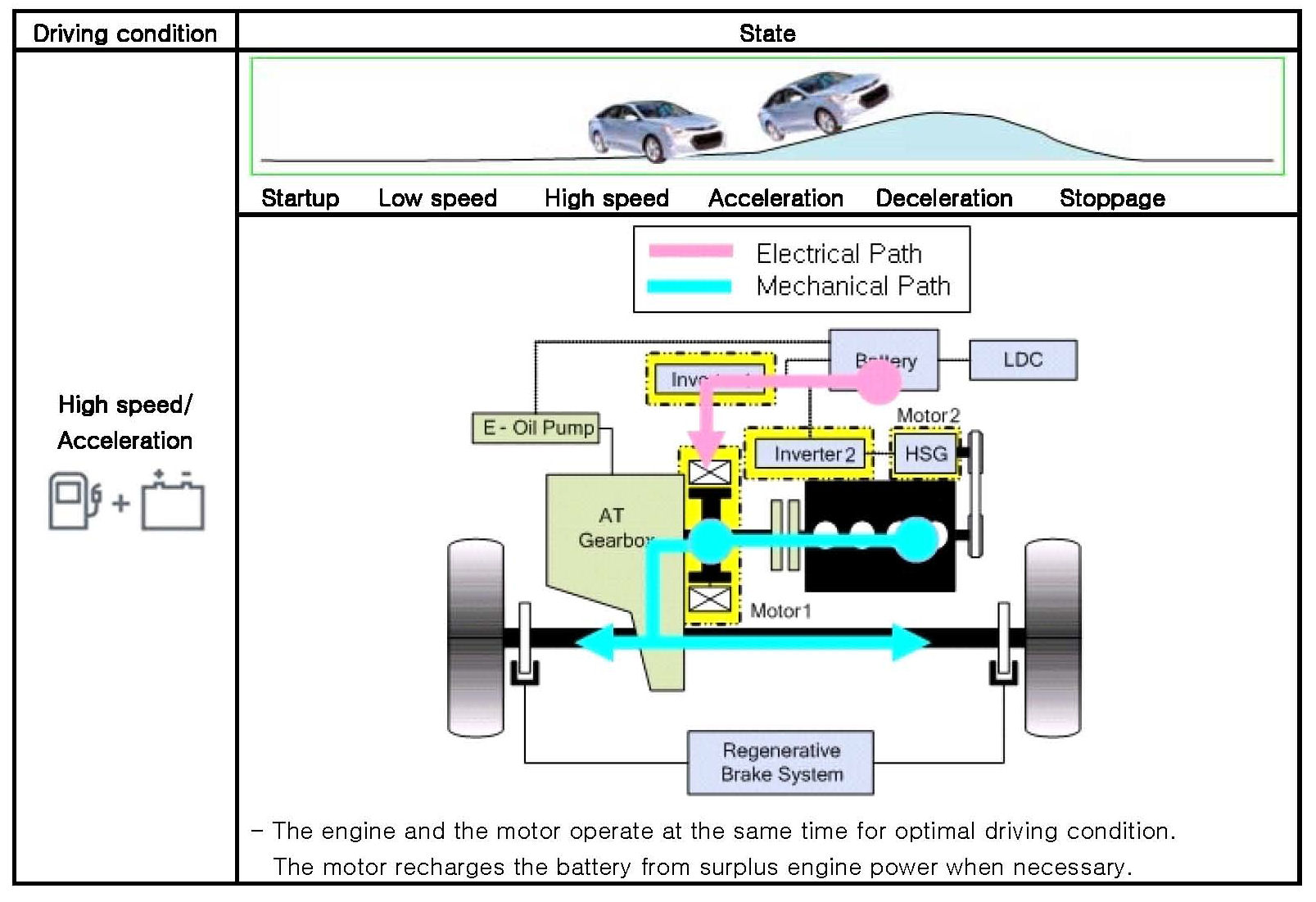

2) High speed/Acceleration

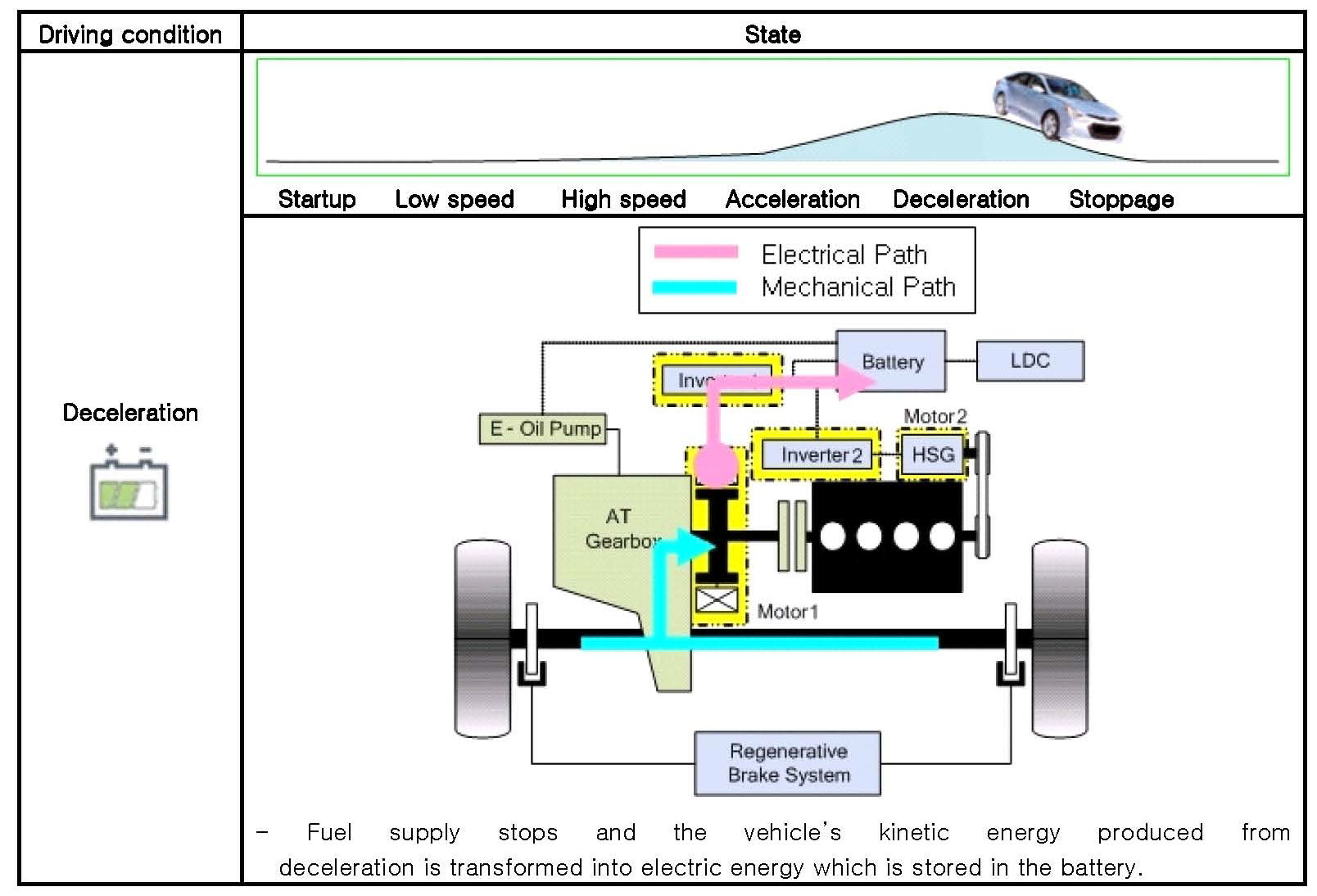

3) Deceleration

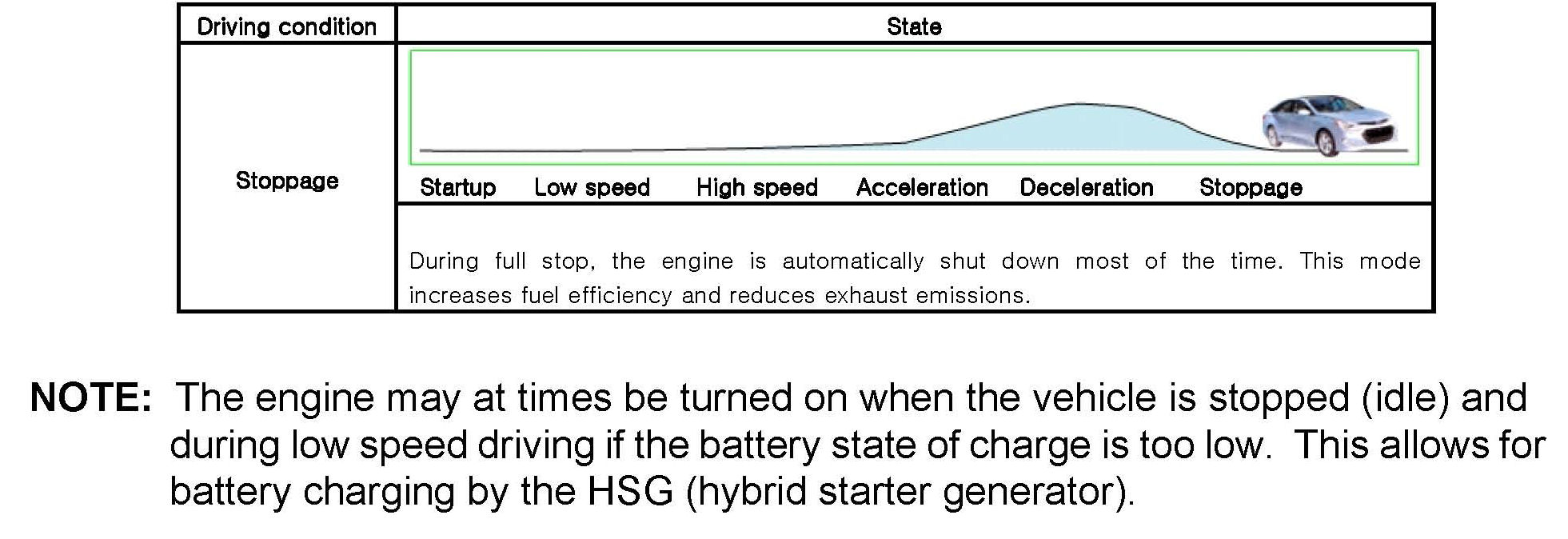

4) Stoppage
