Tire Pressure Monitoring
C1663 Auto Location Failure - General Information

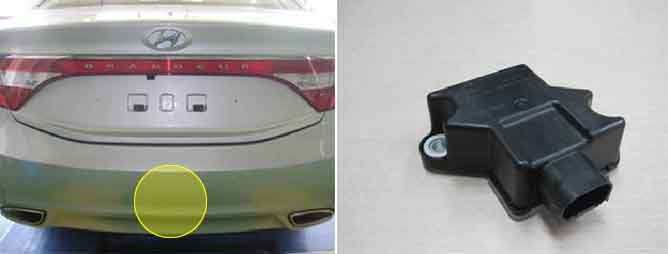

Component Location





General Description

The TPMS is the acronym for Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver)and TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF(Radio Frequency) at a frequency.

DTC Description

TPMS ECU set this DTC if TPMS ECU can not detect the sensor after completed Auto Location for 15min.

DTC Detecting Condition
