P0077 Intake Valve Control Solenoid Circuit-High (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

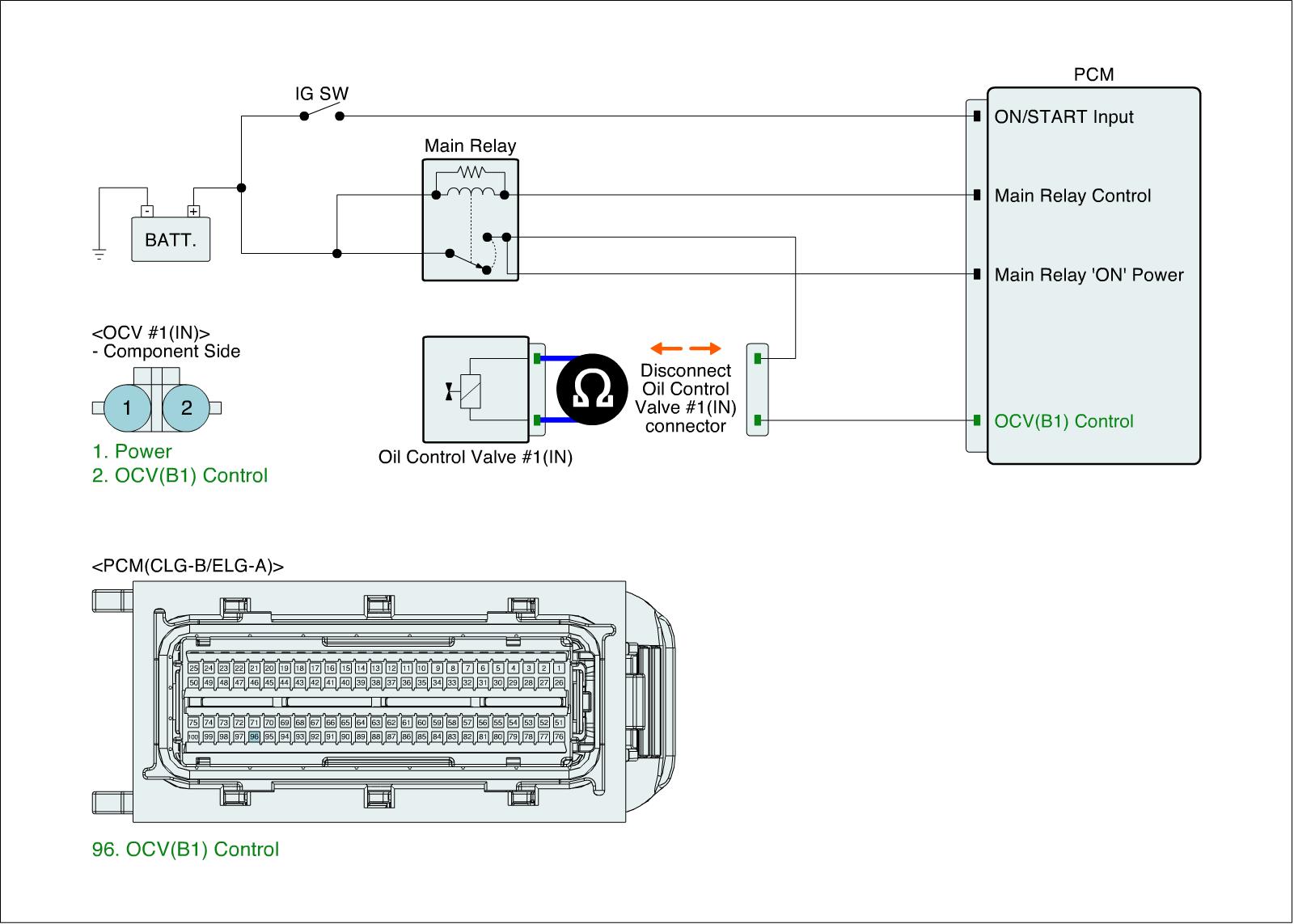

Check OCV resistance
1. IG "OFF" and disconnect OCV connector.
2. Measure resistance between power and signal terminals of OCV. (Component Side)

Specification :9.4 - 10.4 [20°C(68°F)]




3. Is the measured resistance within specification?

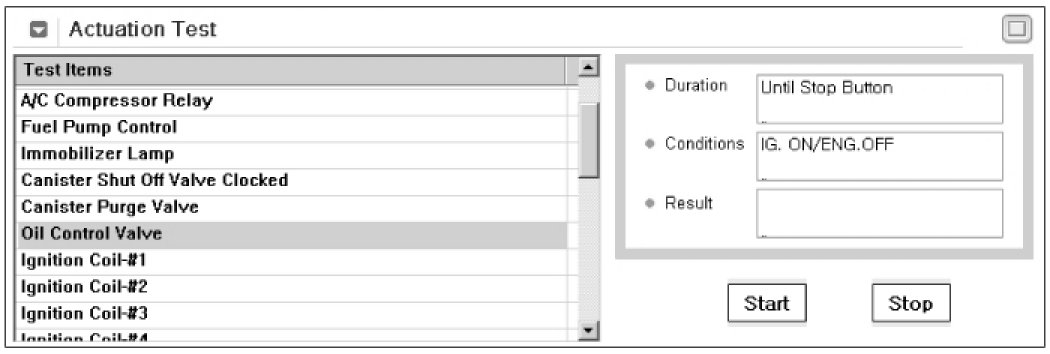

OCV Actuation Test
1. Connect GDS and IG "ON"
2. Select "OIL CONTROL VALVE" on the Actuation Test
3. Activates "OIL CONTROL VALVE" by pressing "START" button
(Should hear a faint click from Oil Control solenoid Valve)
4. Repeat this procedure 4 or 5 times to ensure oil control solenoid valve reliability




5. Does OCV generate click sound during acutation test ?
