Trip Computer: Service and Repair





Inspection

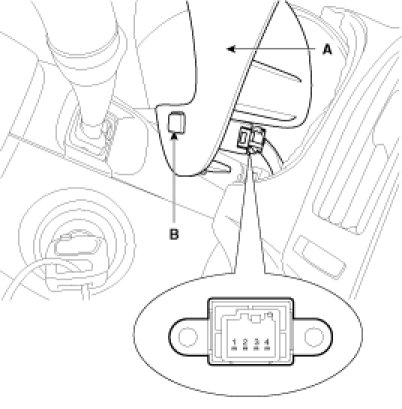

1. Remove the cluster facia panel (A).
2. Operate the switch (B) and check for continuity between terminals with an ohmmeter.










Removal

1. Disconnect the negative (-) battery terminal.

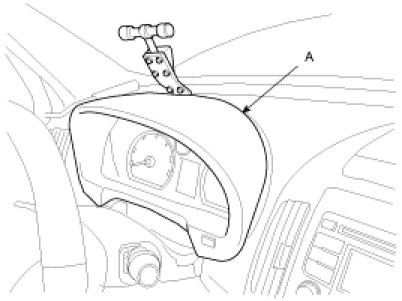

2. Remove the cluster facia panel (A) after loosening 2 screws.

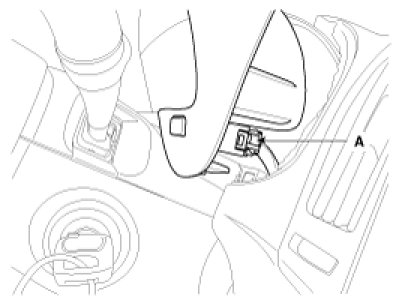

3. Disconnect the trip computer connector (A).




4. Remove the trip computer switch (A) from the cluster facia panel after loosening 2 screws.






Installation

1. Install the trip computer to the cluster facia panel.
2. Install the cluster facia panel.
