Courtesy Lamp: Service and Repair
Removal 1.
Disconnect the negative(-) battery terminal.
2.
Remove the
vanity lamp lens(A) and then remove the bulb.
3.

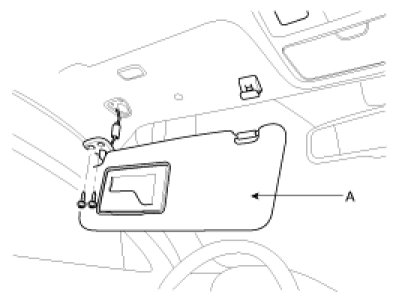

Remove the sunvisor(A) after loosening the screws(2EA).
4.
Disconnect the sunvisor connector(A).
Installation 1.
Install the vanity bulb.
2.
Install the
vanity lamp lens.
3.
Install the sunvisor assembly.
