Tail Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

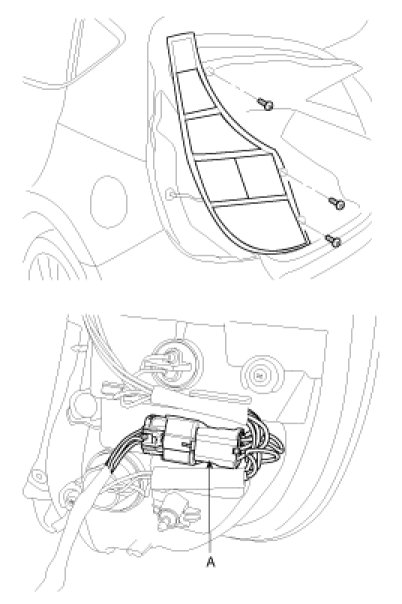

2. Loose the screws (3EA) holding the rear combination lamp then disconnect the connector (A) then remove the rear combination lamp.

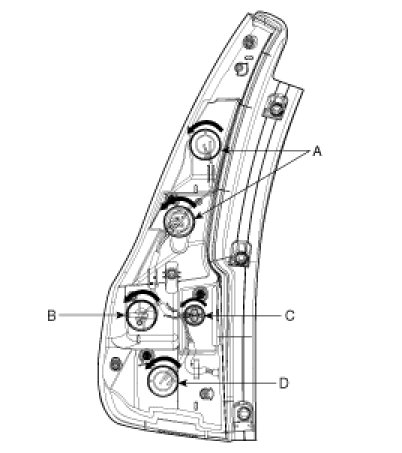

3. Replace the bulbs (4EA) turning in the counter clockwise direction.
A : Tail lamp
B : Rear turn signal lamp
C : Back up lamp
D : Stop lamp

Installation

1. Connect the lamp connector after assembling the bulb.
2. Install the rear combination lamp assembly.
