Ignition Coil: Testing and Inspection

Inspection

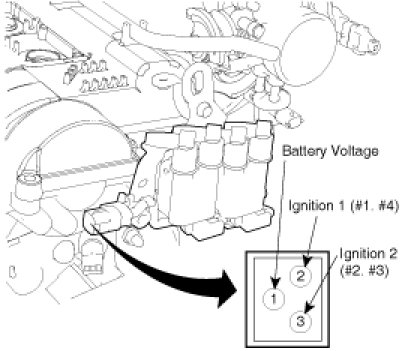

1. Measure the primary coil resistance between terminals 1 and 2.

Standard value :0.58 ± 10% (Ohms)

2. Measure the secondary coil resistance between the high-voltage terminal for the No.1 and No.4 cylinders, and between the high-voltage terminals for the No.2 and No.3 cylinders.

Standard value :8.8 ± 15% (KOhms)

CAUTION:
When measuring the resistance of the secondary coil, be sure to disconnect the ignition coil connector.
