A/T - DTC's P0711/P0712/P0713 Set

NUMBER
11-AT-016

GROUP
AUTOMATIC
TRANSMISSION

MODEL
GENESIS SEDAN (BH) EQUUS (VI)

DATE
SEPTEMBER, 2011

SUBJECT:
ATM OIL TEMPERATURE SENSOR DTC
P0711, P0712 & P0713

Description:
The Genesis Sedan and Equus are equipped with an 8-speed transmission. Do not replace the transmission for the DTC listed below. Instead, follow the repair procedure and replace the related part.

Applicable Vehicles:
Model Year 2012 Genesis Sedan 3.8L/4.6L/5.0L and Equus 5.0L equipped with 8-speed transmission.

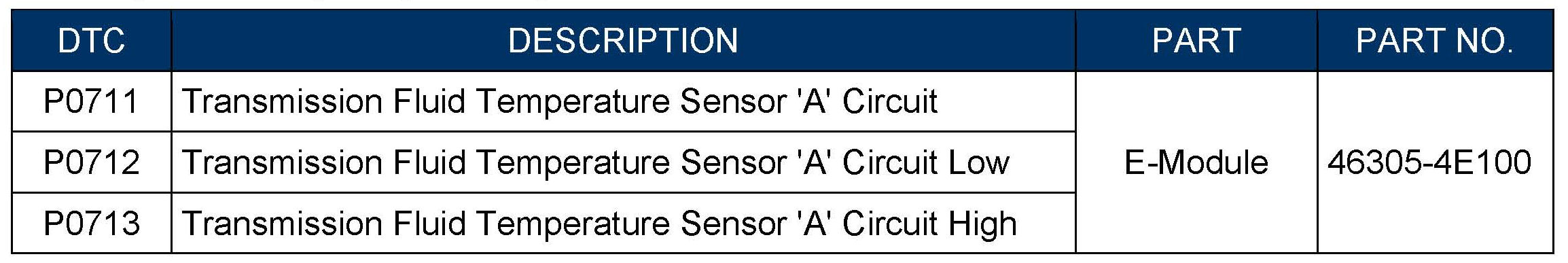

DTC LIST & PARTS INFORMATION:

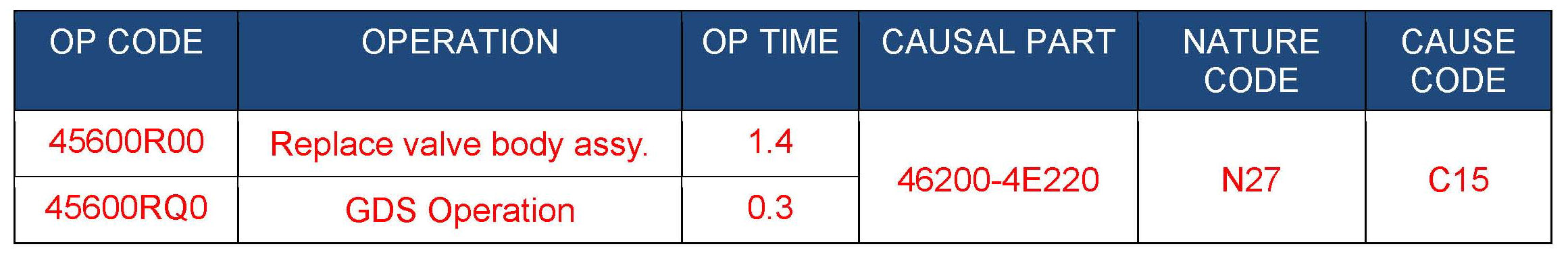

WARRANTY INFORMATION:

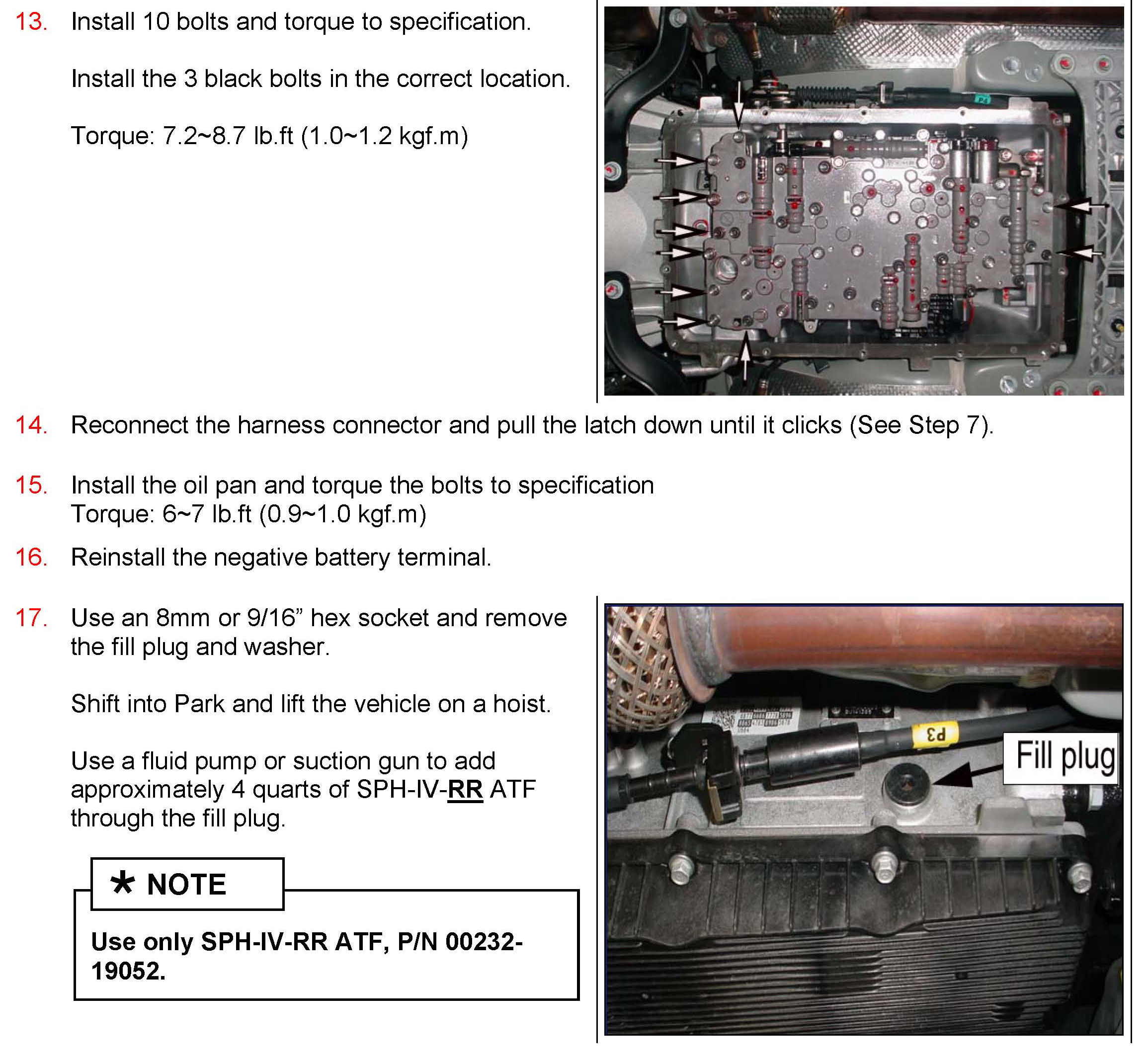

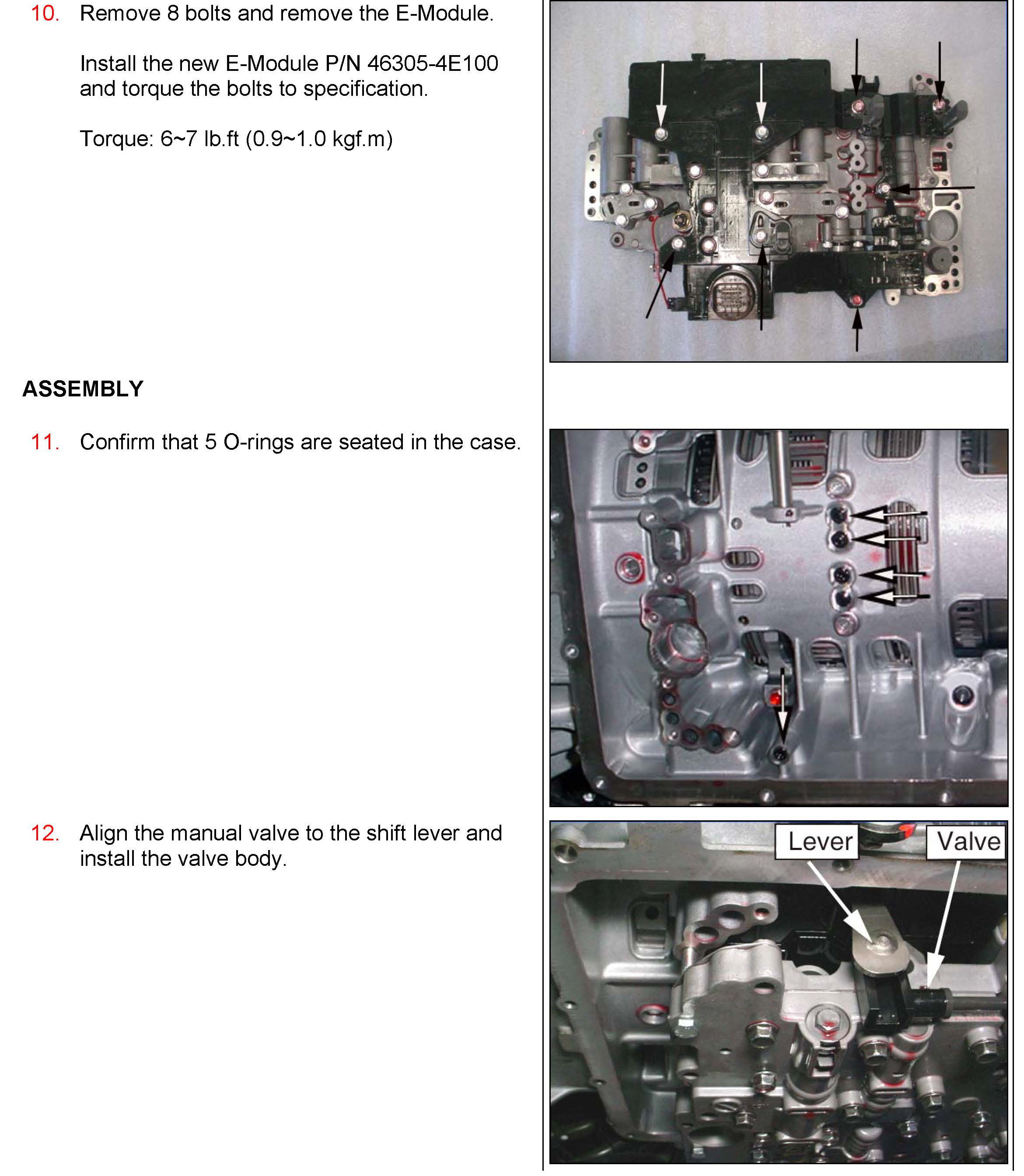

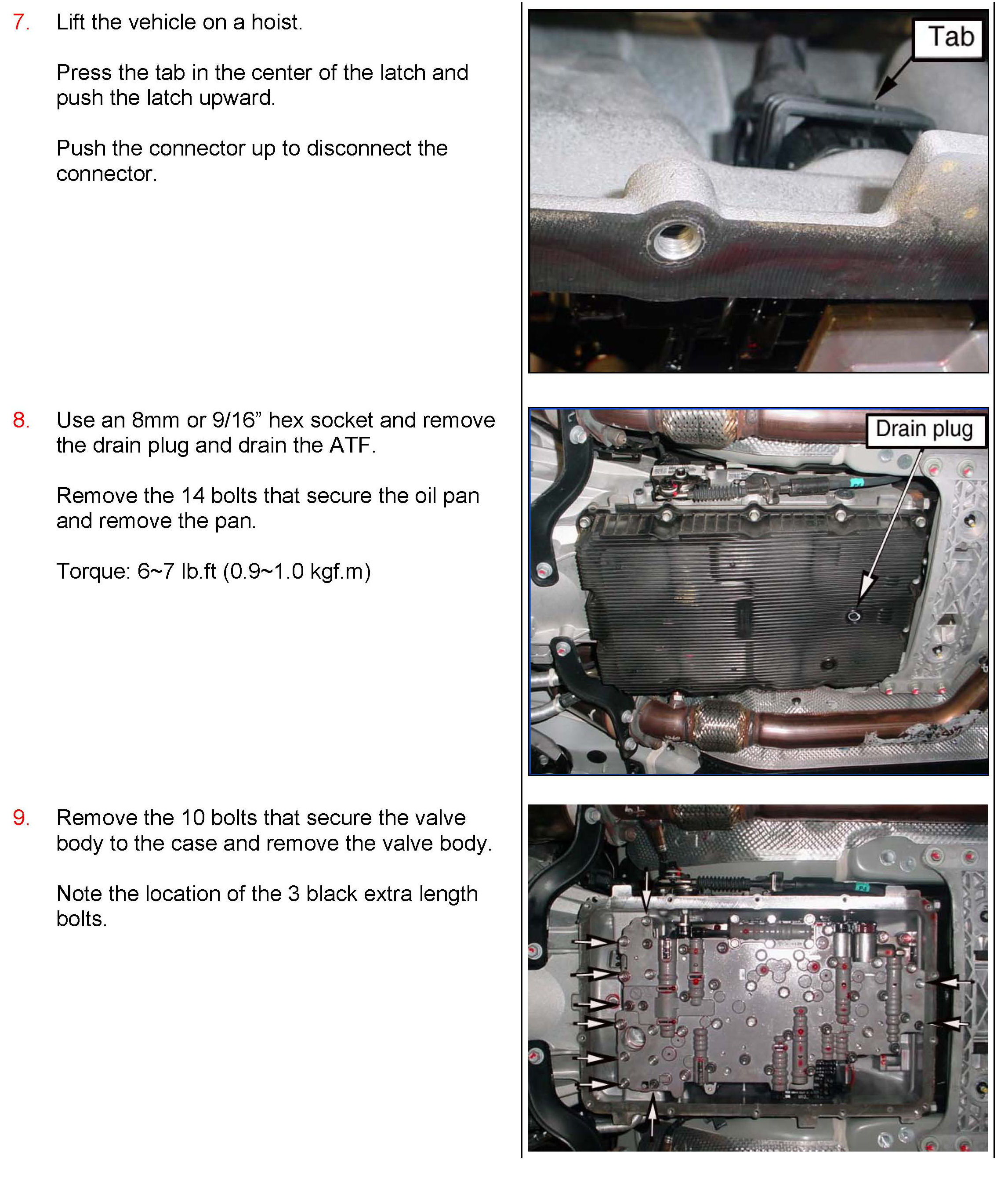

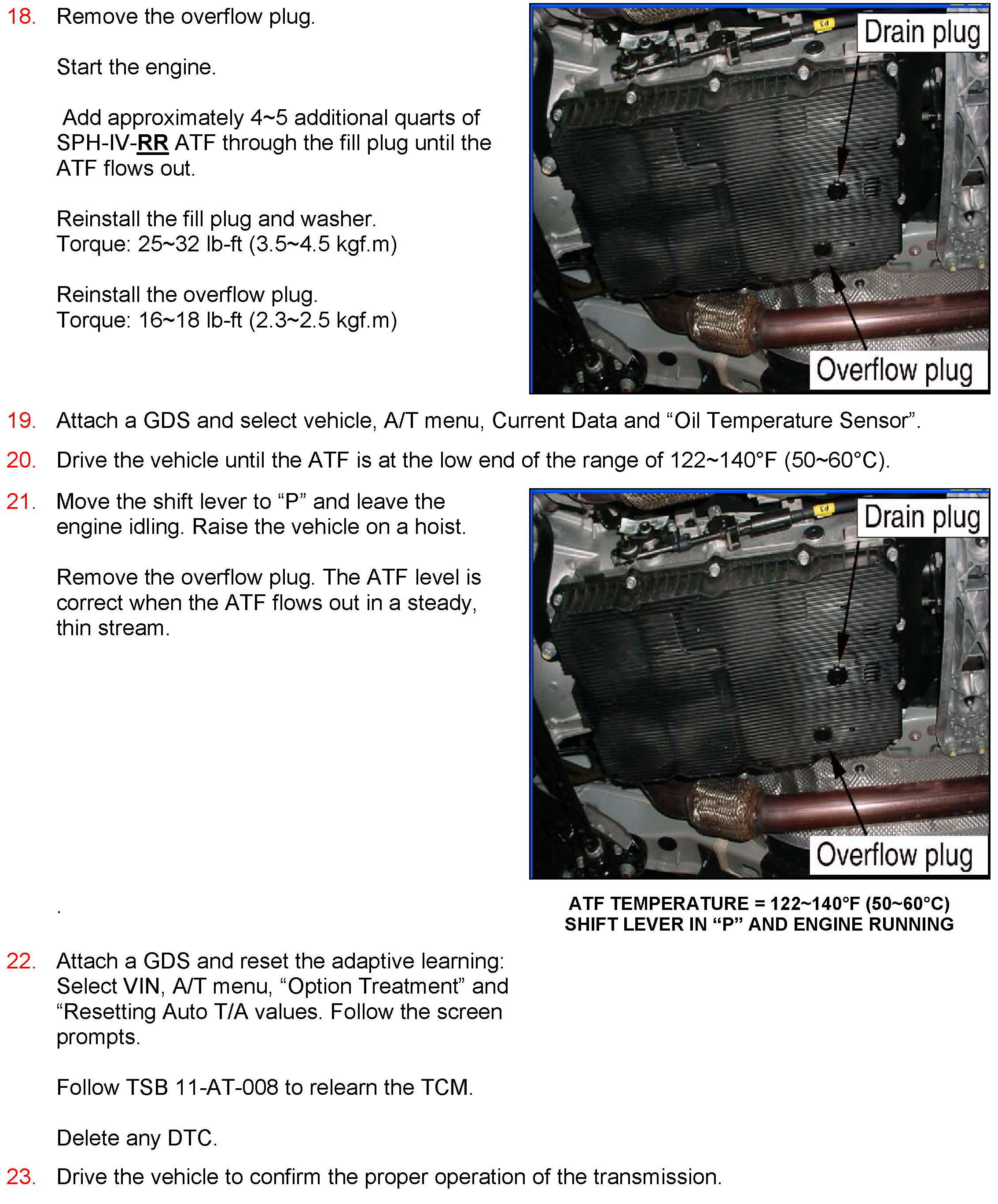

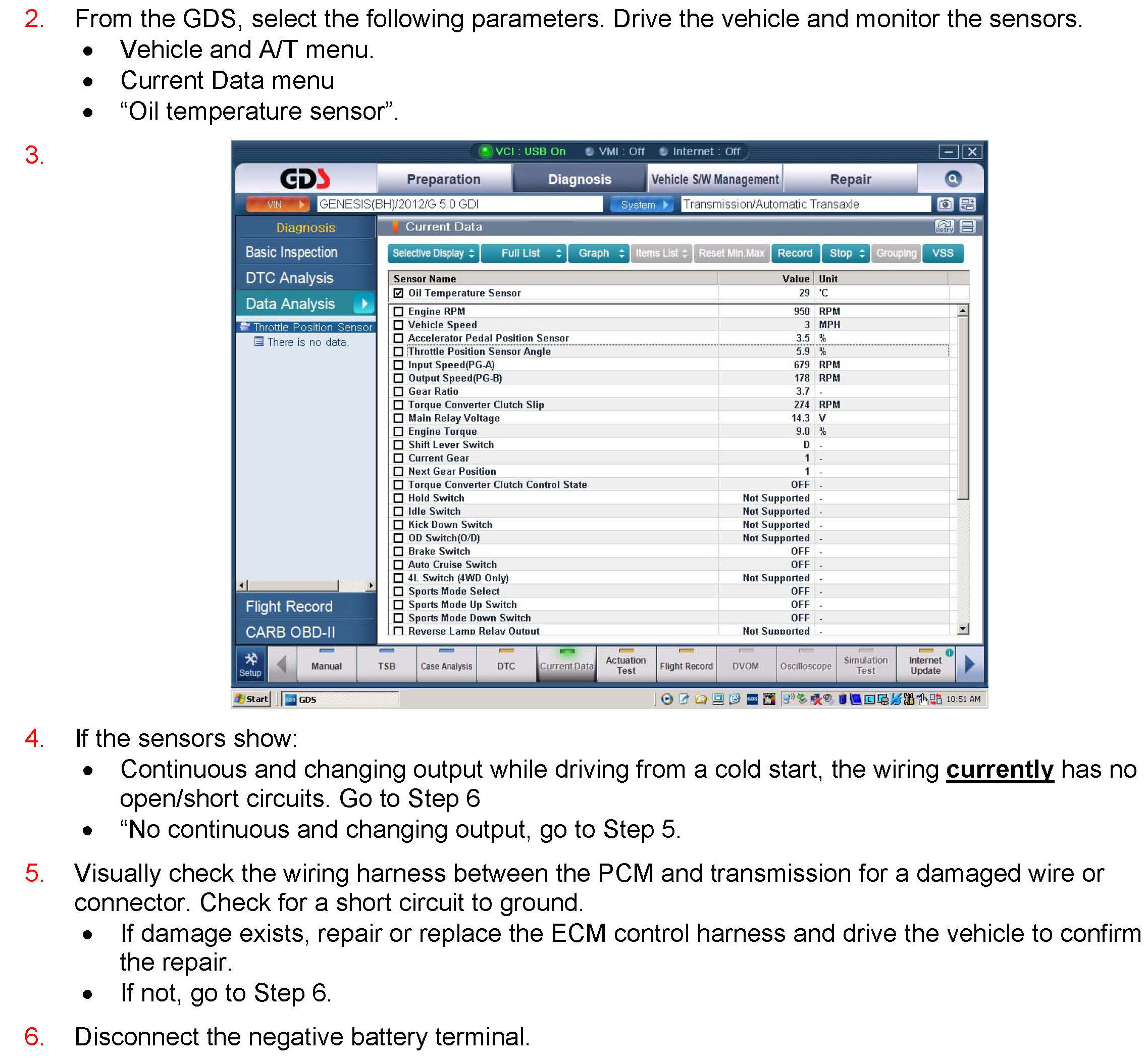

SERVICE PROCEDURE:
