Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the shift lever knob (A) pulling up.

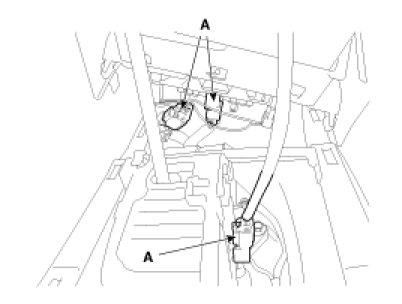

3. Remove the console under cover connectors(A).

4. Remove the console under cover (A).

5. Remove the multimedia jack from the console under cover.

Installation

1. Install the Multimedia jack to the console under cover.
2. Reconnect the connector
3. Install the console under cover.
4. Install the shift lever knob.
