Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.

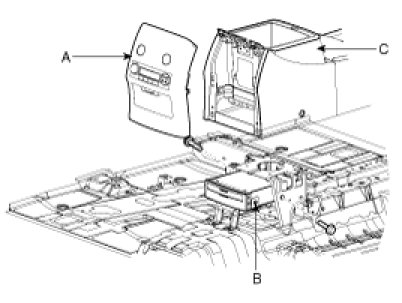

2. Remove the console and rear console cover (A).

3. Loosen the bolts (2EA) from the rear console mounting bracket.
4. Remove the DVD player (B) from the center floor panel (C) after loosening 2 bolts.




5. Disconnect the connector from DVD player.

Installation

1. Install DVD player on the rear console bracket.
2. Install the DVD player on the center floor panel and connect the DVD player connectors.
3. Install the console.
