Repair Procedures
Replacement
Sunvisor Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

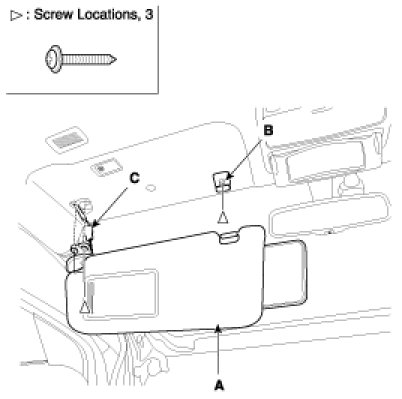

1. Remove the sunvisor (A) and holder (B) from each side.
2. Disconnected the connector (C).
3. Installation is the reverse of removal.
Overhead Console Lamp Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

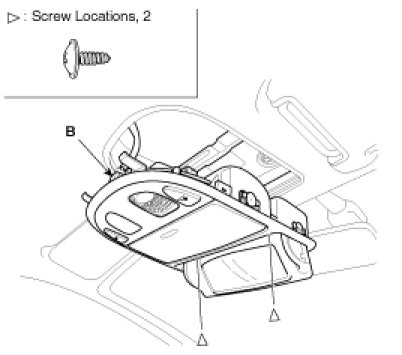

1. Remove the overhead console.
A. Remove the screw.
B. Disconnect the connector (B).
2. Installation is the reverse of removal.
Room Lamp And Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.
1. Remove the room lamp.
A. Remove the lens (A).
B. Remove the screws.
C. Pull out the room lamp (B).
D. Disconnect the connector (C).
[Front]
[Rear]
2. Installation is the reverse of removal.
Personal Lamp Replacement
1. Remove the lamp (A).
2. Disconnect the connector (B).
3. Installation is the reverse of removal.
Assist Handle Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

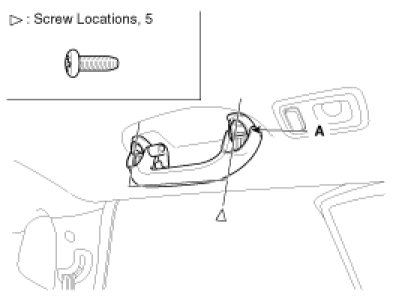

1. Remove the covers, and remove the screws, then remove the assist handle (A).
2. Installation is the reverse of removal.
Roof Trim Replacement
NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.
1. Remove the following items.
A. Front seat, rear seat assembly.
B. Front, rear door scuff trim.
C. Front pillar trim.
D. Center lower, upper pillar trim.
E. Rear lower, upper pillar trim.
F. Overhead console.
G. Room ramp.
H. Sunvisor, assist handle.
I. Vanity lamp and hands free mic.
2. Remove the connector.

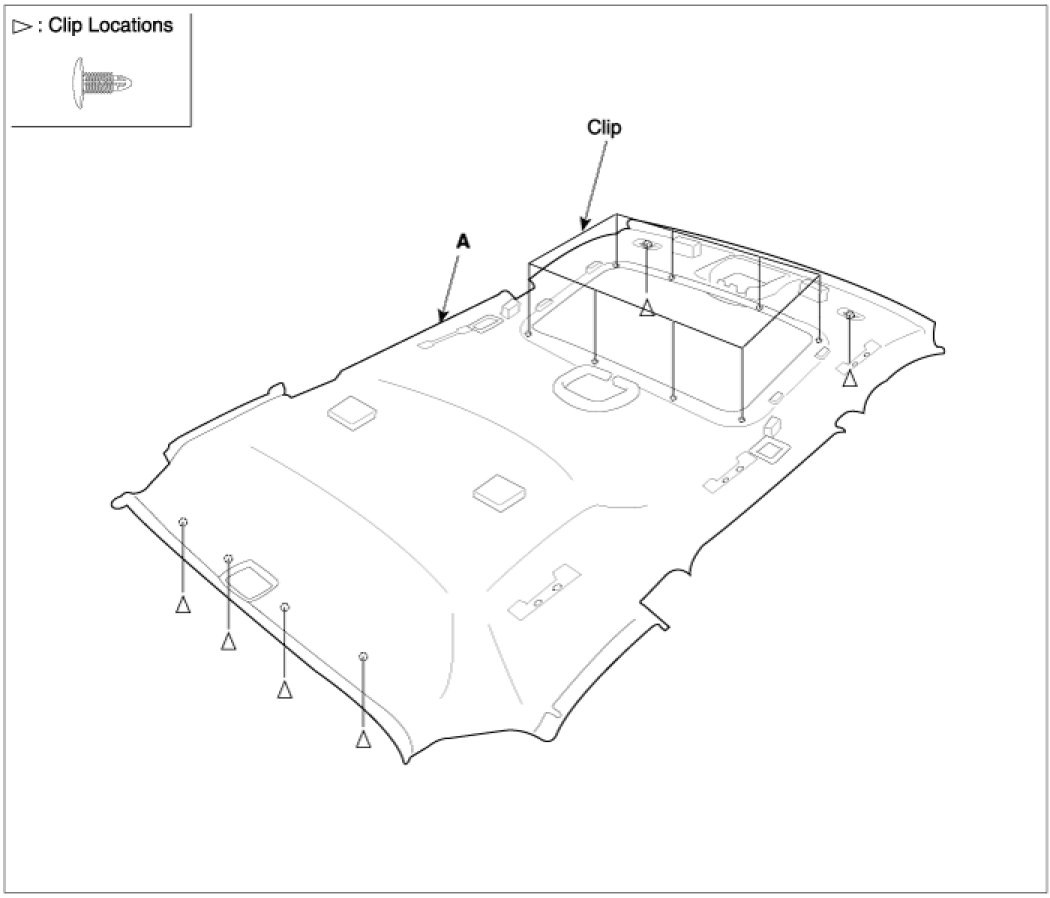

3. Remove the roof trim (A).
4. Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
