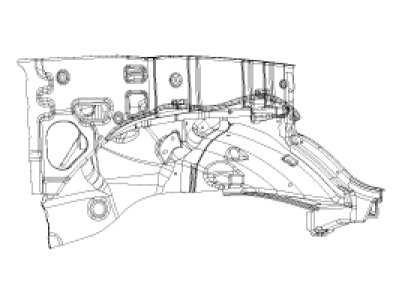

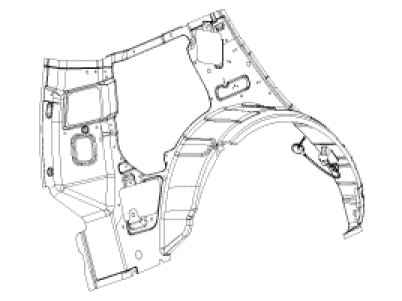

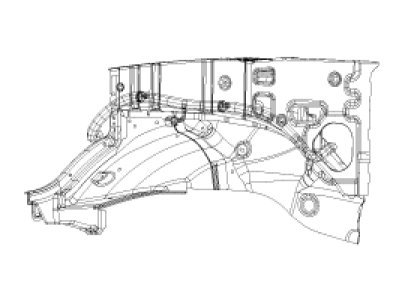

TPMS Initiator





Replacement

1. Disconnect vehicle battery.
2. Remove the malfunctioning part and fit new part.












3. Secure new part to vehicle and fit connector.
4. Re-connect the battery and turn ignition on.
