Remote Control: Service and Repair
Inspection 1.

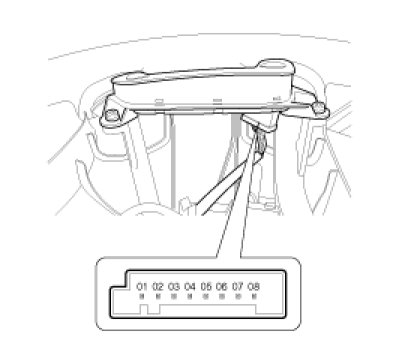

Check for resistance between No.6 and No.7 terminals in each switch position.
[Audio + Voice]Replacement 1.
Disconnect the negative (-) battery terminal.
2.

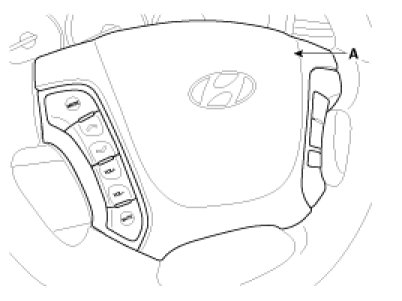

Remove the driver airbag module.
3.

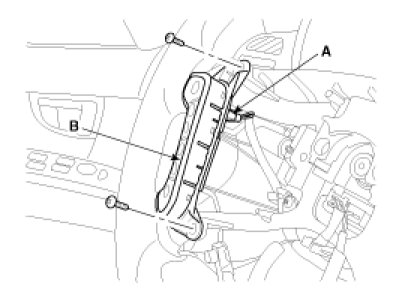

Remove the audio
remote control switch (B) after remove the steering wheel remote control switch connector (A) and 2 screws.
4.
Installation is the reverse order of removal.
