Exterior Moulding / Trim: Service and Repair





Replacement

Roof Rack Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to scratch the body surface.

1. Remove the roof trim.

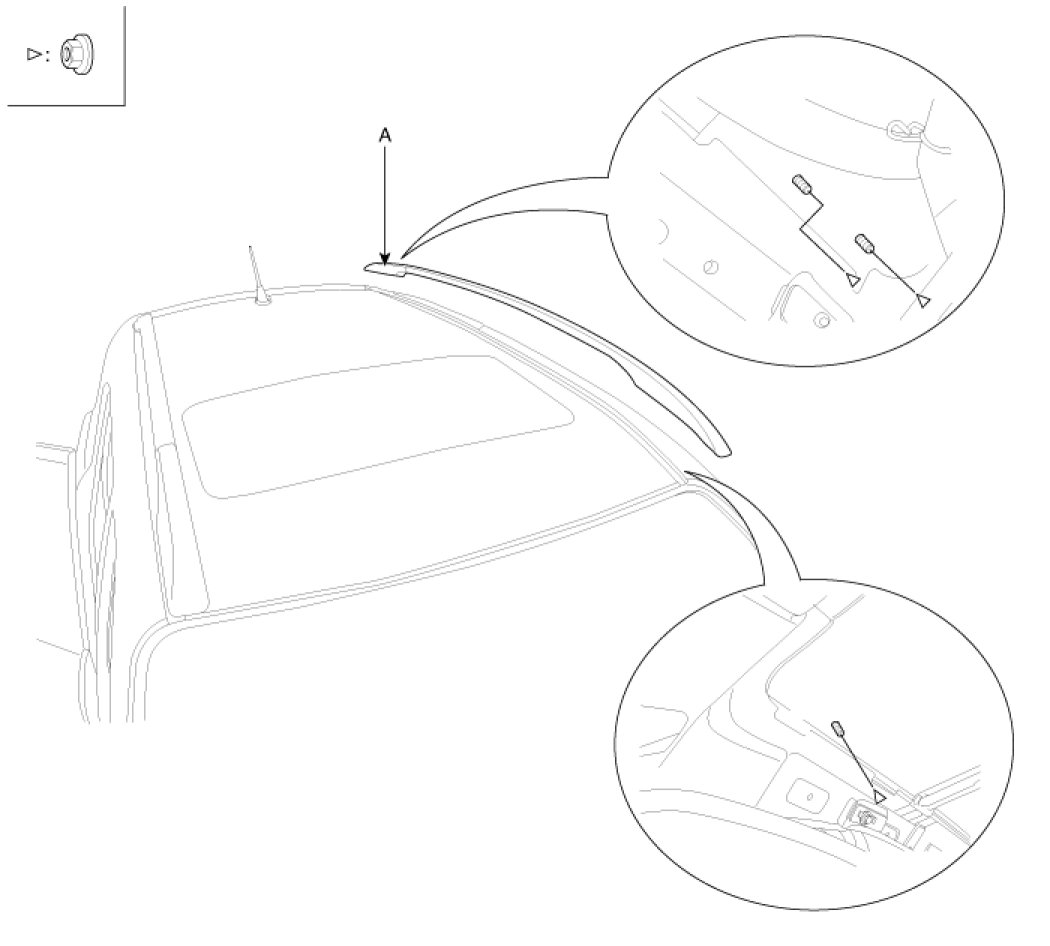

2. After loosening the mounting nuts, then remove the roof rack (A).
3. Installation is the reverse of removal.





Side Garnish And Side Sill Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

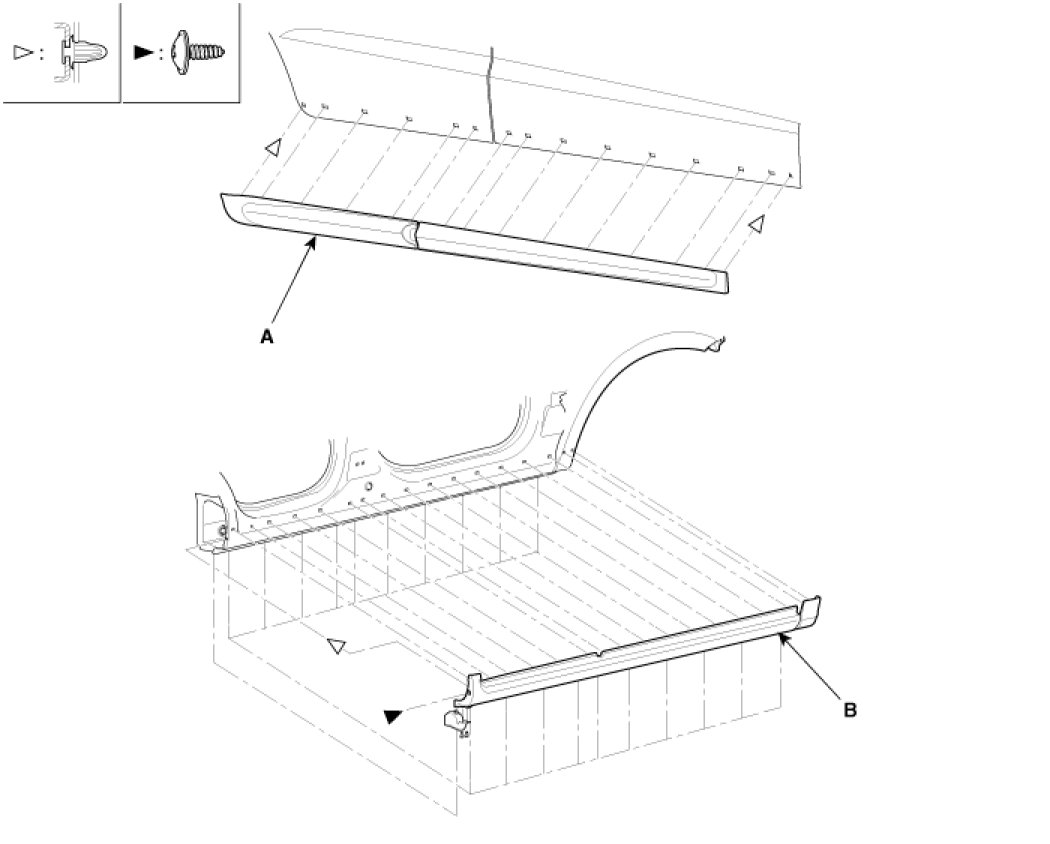

1. Loosen the mounting screws and clips, then remove the side garnish (A) and side sill (B).
2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
