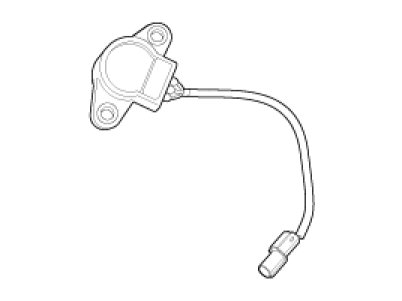

VCM Position Sensor

Description

The VCM (Variable Charge Motion) Position Sensor is installed on the intake manifold and senses the position of the VCM Valve. It has a variable resistor (potentiometer) which is changed according to the valve angle.
