Center Mounted Brake Lamp: Service and Repair
RemovalHigh Mounted Stop Lamp 1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
3.
Remove the spoiler.
4.

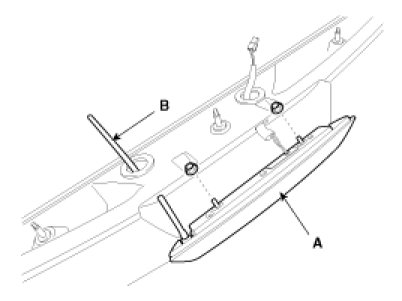

Remove the high mounted stop lamp assembly (A) after loosening the nuts and washer nozzle (B).
Installation 1.
Install the high mounted stop lamp and washer nozzle.
2.
Install the spoiler and tailgate trim.
