Repair Procedures





Removal

1. Remove the front wheel & tire.

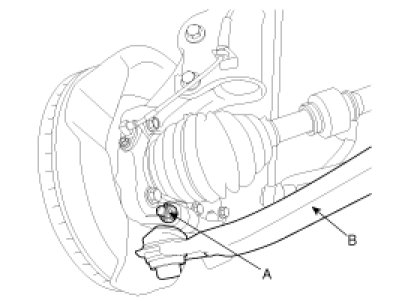

2. Remove the split pin, bolt, and nut (A).
3. Disconnect the lower arm (B) ball joint with the knuckle.

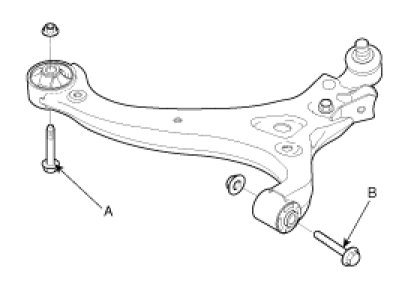

4. Loosen the bolts and nut (A, B) and then remove the lower arm from the sub-frame.






Inspection

1. Check the bushing for wear and deterioration.
2. Check the lower arm for deformation.
3. Check the all bolts and nuts.

Installation

1. Install the front lower arm to the sub-frame and then tighten the bolts (A, B) and nuts.

Tightening torque :
140 - 160N.m (14.0 - 16.0kgf.m, 101 - 116lb-ft)




2. Connect the lower arm (B) ball joint with the knuckle and then tighten the bolt and nut (A).

Tightening torque :
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)

3. Install the split pin to the bolt.




4. Install the front wheel & tire.

Tightening torque :
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)
