Power Mirror Switch: Service and Repair





Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

3. Disconnect the connector from the power window switch module.

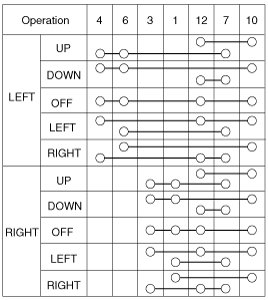

4. Check for continuity between the terminals in each switch position according to the table.






Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the front door trim.

3. Disconnect the power door mirror switch connector (A).




4. Remove the power door mirror switch (A) after loosening the mounting screws.






Installation

1. Install the driver power window switch and connectors.
2. Install the front door trim.
