Windshield Deicer Switch





Inspection

1. The windshield deicer switch inputs can be checked using the GDS.
2. To check the input value of windshield deicer switch, select option "Body Control Module".

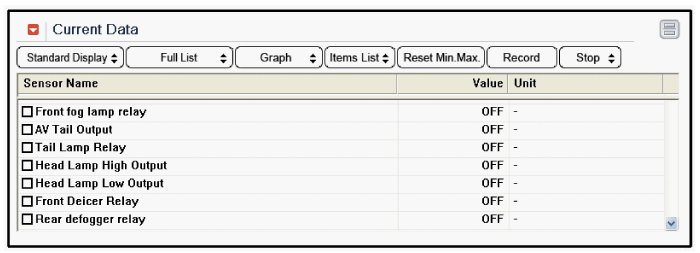

3. Select option "Current Data" of "smart junction box".

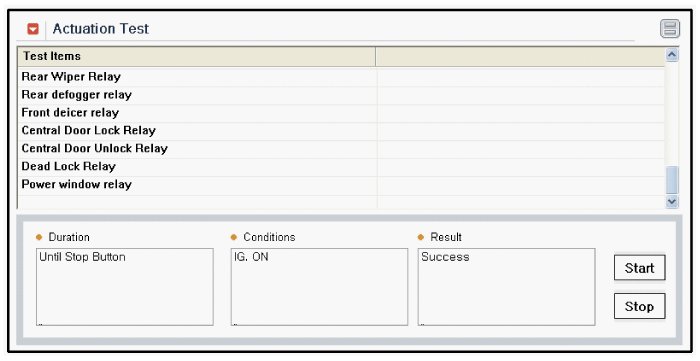

4. To check the input value of windshield deicer switch in force mode, select option "Actuation Test" of "smart junction box".






Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad center garnish (A).




3. Remove the heater and air conditioner controller (A) after loosening the mounting screws.






Installation

1. Install the heater and air conditioner controller to the center fascia panel.
2. Install the crash pad center garnish.
3. Connect the negative (-) battery terminal.
