Brake Switch (Cruise Control): Testing and Inspection

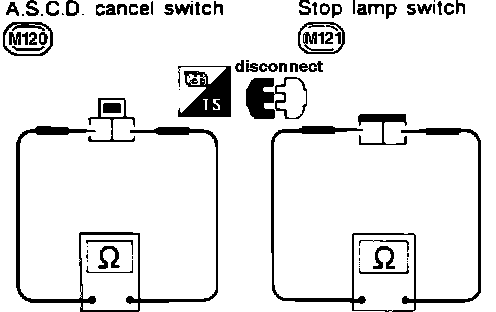

Fig. 82 A.S.C.D. Brake & Stop Lamp Switch Terminal Connections.:
For location of speed control components, refer to
Cruise Control/Locations. 1.
Connect ohmmeter to terminals as shown in
Fig. 82. 2.
With brake pedal depressed, no continuity should exist at A.S.C.D. cancel switch. Release pedal, continuity should then exist.
