Throttle Valve Switch

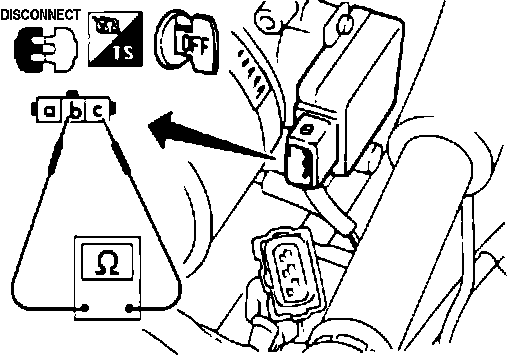

Fig. 212 Throttle Valve Switch Continuity Test:
1.
Disconnect
idle switch harness connector.
2.
Check continuity between terminals B and C,
Fig. 212. 3.
Continuity should exist with accelerator pedal released.
4.
No continuity should exist with accelerator pedal depressed.
