Component Inspection

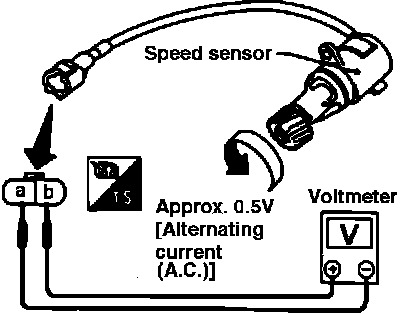

Fig. 89 Speed Sensor Terminal Identification.:
For location of speed control components, refer to
Cruise Control/Locations. 1.
Remove
speed sensor, then connect voltmeter to terminal as shown in
Fig. 89. 2.
Rotate speedometer pinion, reading should be approximately 0.5 volts.
