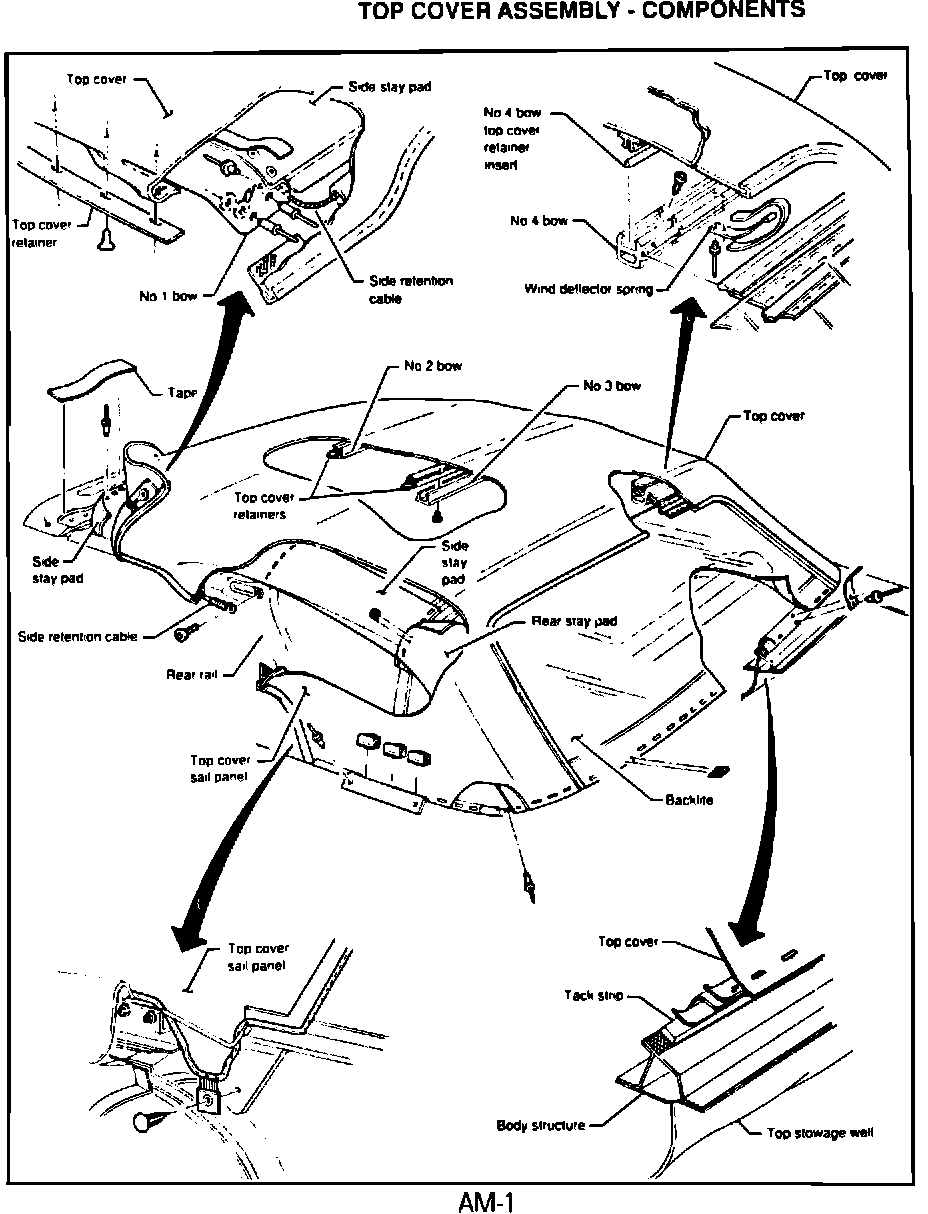

Convertible Top - Components Exploded View

Models: 1990-92 M30 Convertible

Section: Amendment

Classification: AM92-001

Bulletin No.: ITB92-041

Date: July 31, 1992

AMENDMENT TO THE M30 CONVERTIBLE SERVICE MANUAL

SUPPLEMENT

APPLIED MODELS: 1990-92 M30 Convertibles

SERVICE INFORMATION:

Included in this Bulletin at the time of distribution was a corrected drawing for Page 13-2 of the M30 Convertible Service Manual Supplement, (July 1991 Edition).
