Distributor Cap: Description and Operation

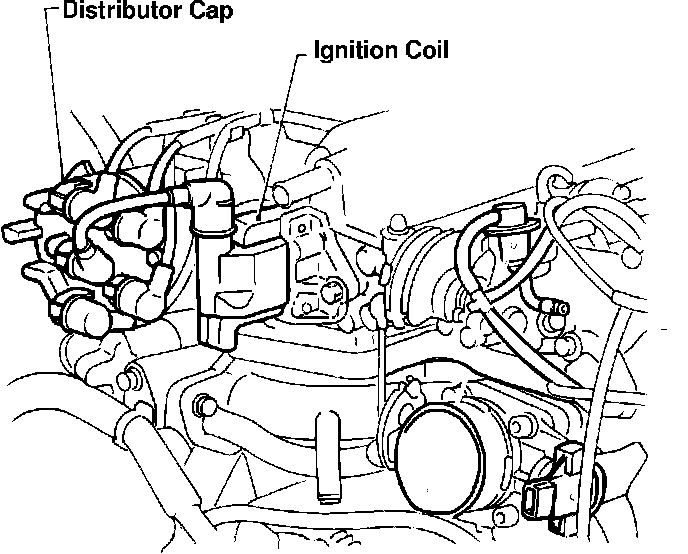

Distributor Cap And Ignition Coil:

PURPOSE
Used to make the connection between the rotor and the correct spark plug wire.

OPERATION
High tension current from the rotor is distributed to the towers of the distributor cap at a pre-set sequence (firing order) and then to the spark plug wires which carry the current on to the spark plugs.
