Starting System: Description and Operation

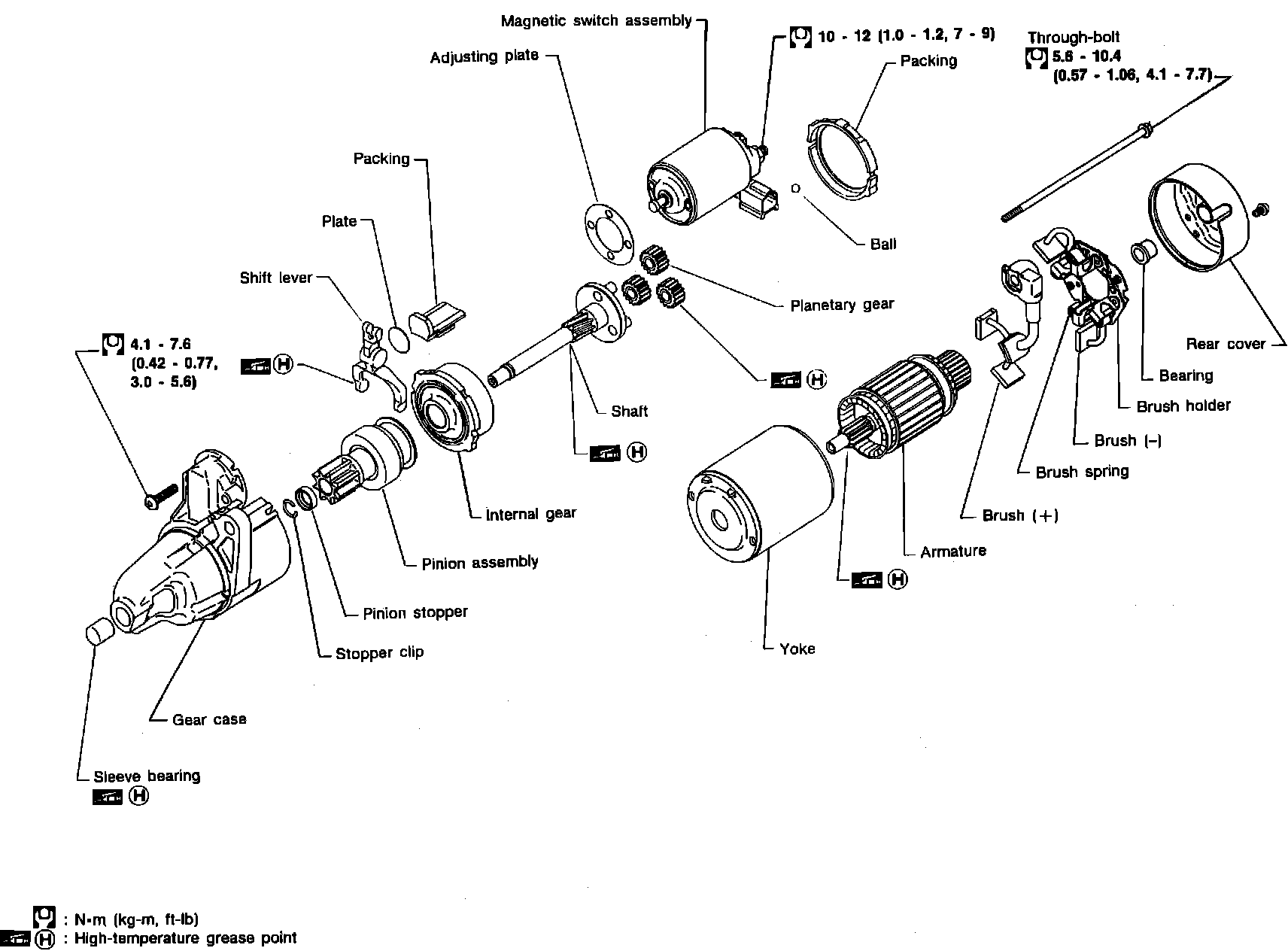

Fig. 1 Exploded View Of Mitsubishi Starter (Typical):

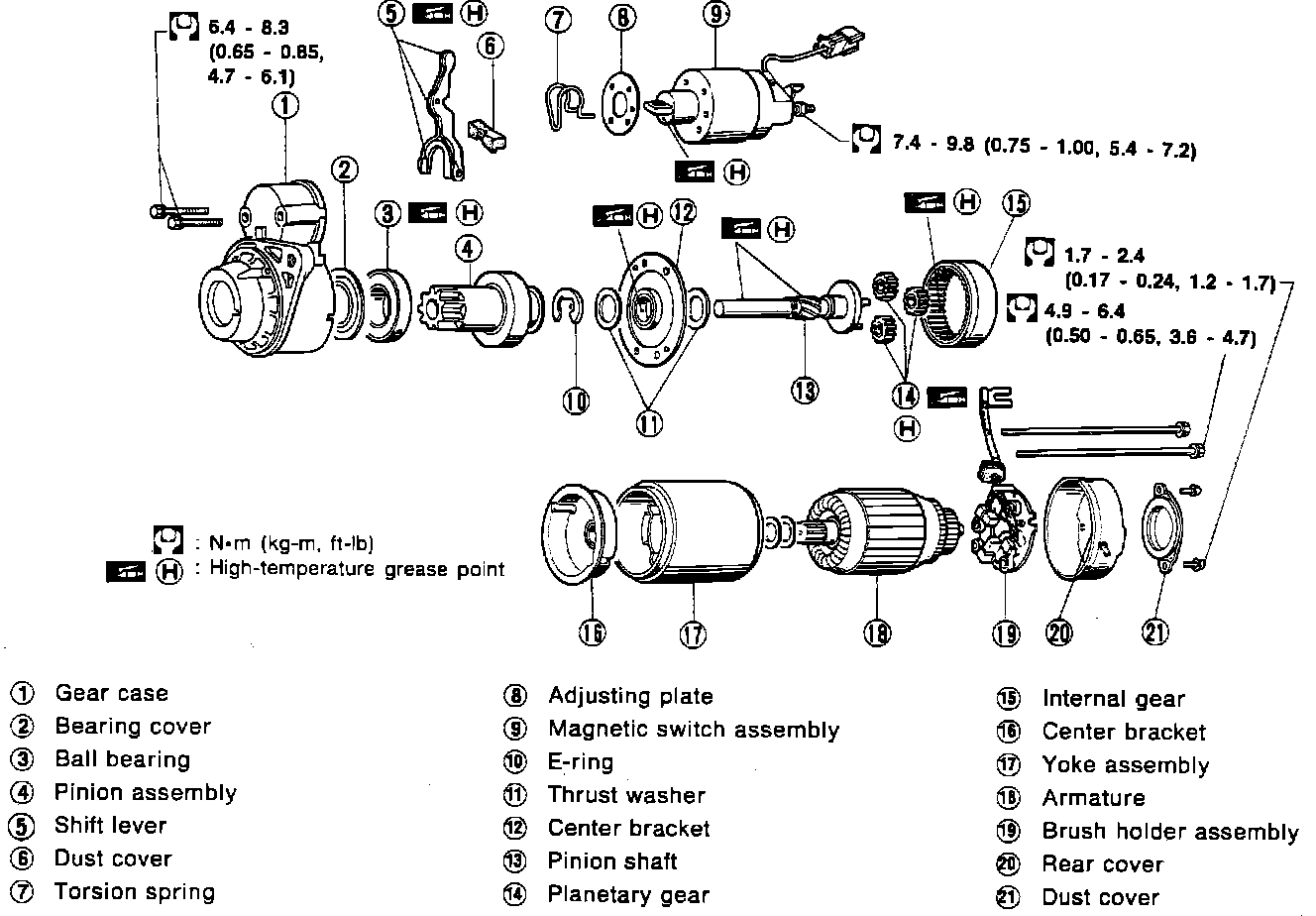

Fig. 2 Exploded View Of Hitachi Starter. S114-484:

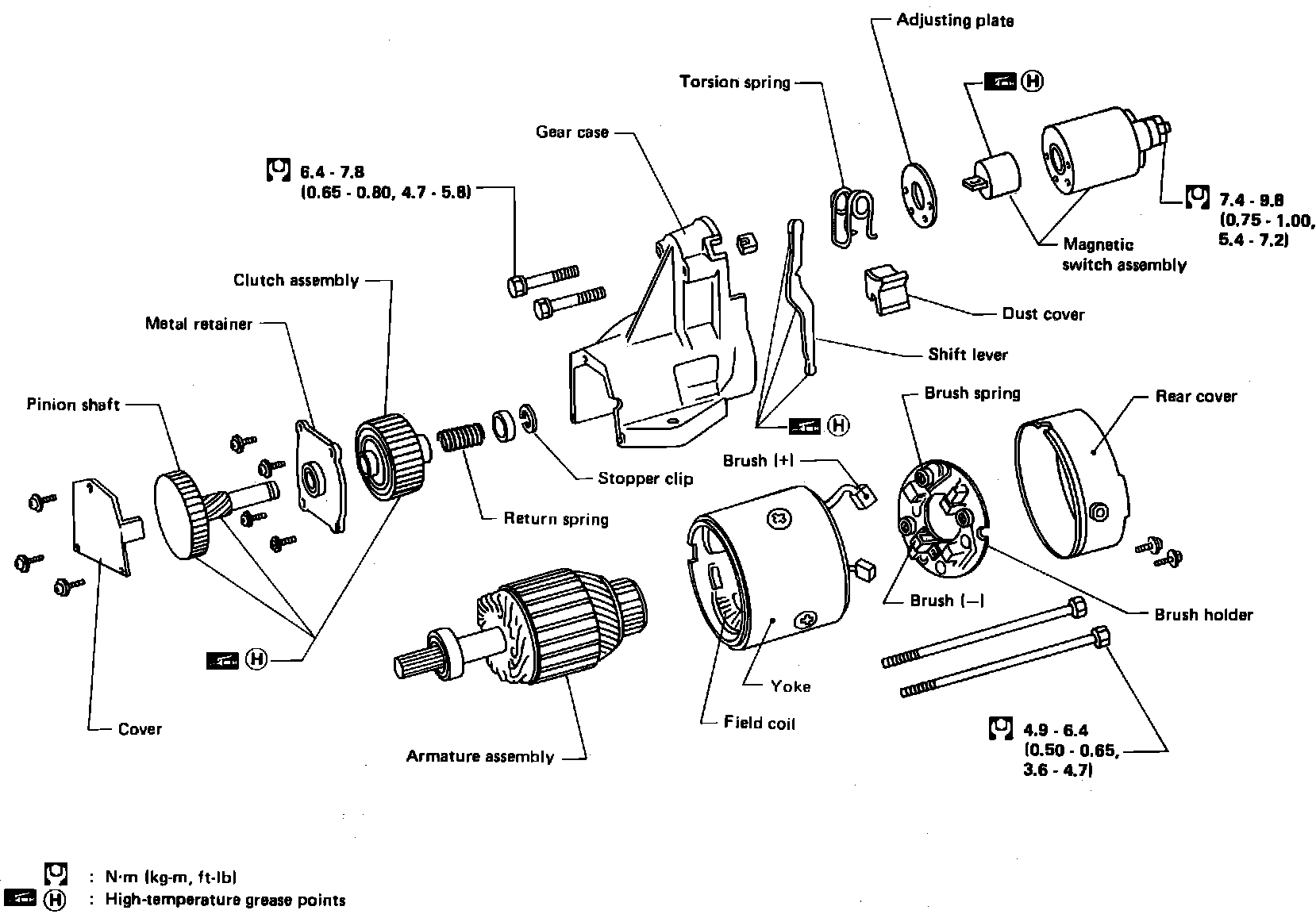

Fig. 3 Exploded View Of Hitachi Starter. S114-701A:

These gear reduction starter motors, Figs. 1 through 3 are a compact type starter that is equipped with an intergral starter solenoid. With a gear reduction system, the starter motor is relatively small but still provides the necessary torque to crank the engine.
