Cruise Control: Adjustments

Wire Adjustment:

CAUTION:

^ Be careful not to twist A.S.C.D. wire when removing it.
^ Do not tense A.S.C.D. wire excessively during adjustment.

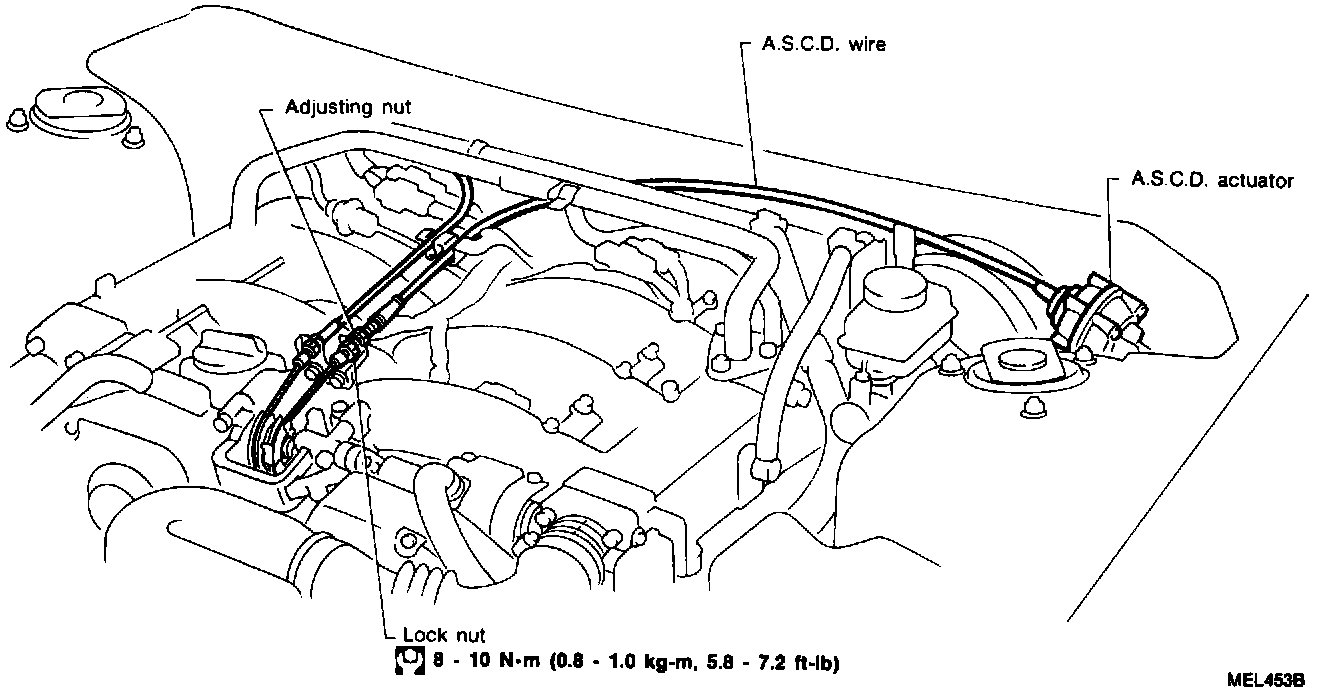

After confirming that accelerator wire is properly adjusted. adjust the tension of A.S.C.D. wire in the following manner.

1. After adjusting the length of the accelerator wire, turn a securing nut by 1/2 to 1 turn from throttle open starting position to the wire loosening direction to fix. (Must be securing carried out to prevent response delay of operation of the A.S.C.D.)

2. Securely tighten lock nut to hold adjusting nut in place.

^ For A.S.C.D. cancel switch and clutch switch adjustment.
