Automatic Speed Control Device (A.S.C.D.) Main Switch

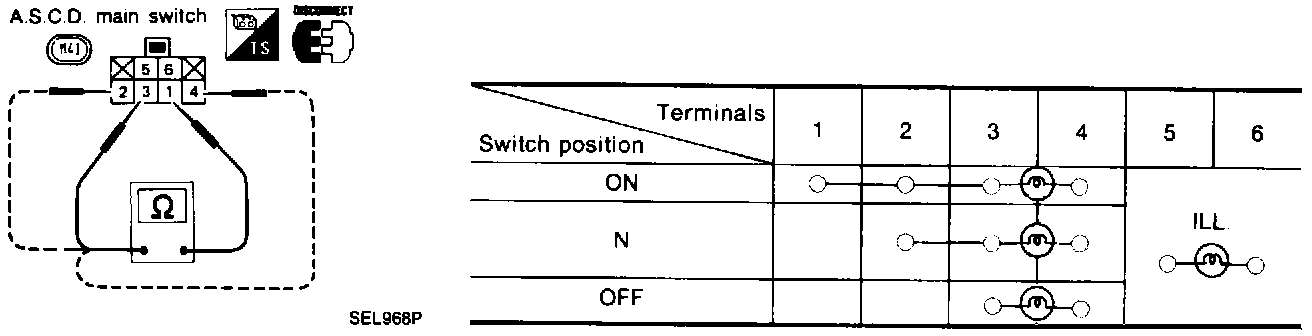

A.S.C.D. Main Switch:





Check continuity between terminals by pushing each button.
Check continuity between terminals by pushing switch to each position.
