Rear

NOTE: Before checking wheel alignment, be sure that vehicle is in an unladen state, i.e. fuel, radiator coolant and engine oil are full and spare tire, jack, hand tools and mats in designated positions.

Adjust, repair or replace as necessary. Make the following checks:
1. Check tires for wear and for improper inflation.
2. Check rear wheel bearings for looseness.

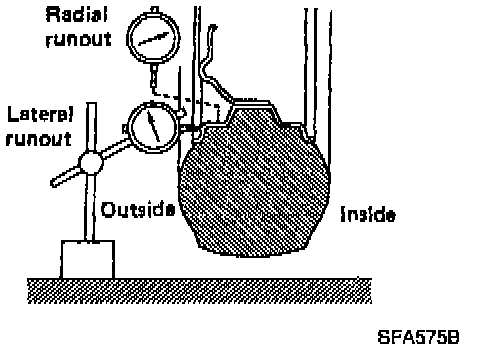

3. Check wheel runout.
4. Wheel runout.
5. Check that rear shock absorber works properly.
6. Check rear axle and rear suspension parts for looseness.
7. Check vehicle posture. refer to Ride Height.
Ride Height
