Ride Height

1. Ensure fluid levels are full and spare tire, tools, jack and mats are in proper position. Bounce vehicle up and down several times.

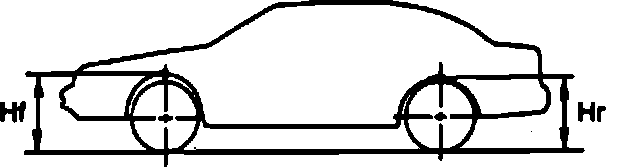

Fig. 5 Vehicle Ride Height Measurement:

2. Check spring height from top of wheelwell to ground.
3. Standard height for front, Fig. 5, is as follows:
a. On models with Super HICAS steering, 27.40 inches.
b. On models less Super HICAS steering, 27.44 inches.

4. Standard height for rear is as follows
a. On models with Super HICAS steering, 26.77 inches.
b. On models less Super HICAS steering, 26.81 inches.

5. Spring height is not adjustable. If out of specification, check for worn springs or suspension parts.
