Turning Angle
1.
Set
wheels in straight ahead position. Then, move vehicle forward until front wheels rest on turning radius gauge properly.
2.
Rotate steering wheel all the way right and left and measure turning angle.
Wheel turning angle (full turn)
Inside wheel: 35°12' - 39°12'
Outside wheel: 31°50' 3.

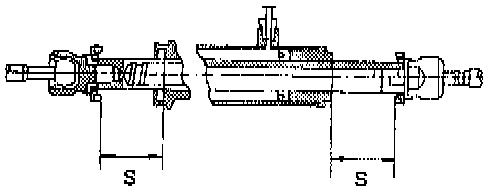

If it is not within specification, check rack stroke. The rack stroke "S" is
65.5 mm (2.579 inch).
