Cranking Signal: Testing and Inspection
Start Signal (Not Self-Diagnostic Item):

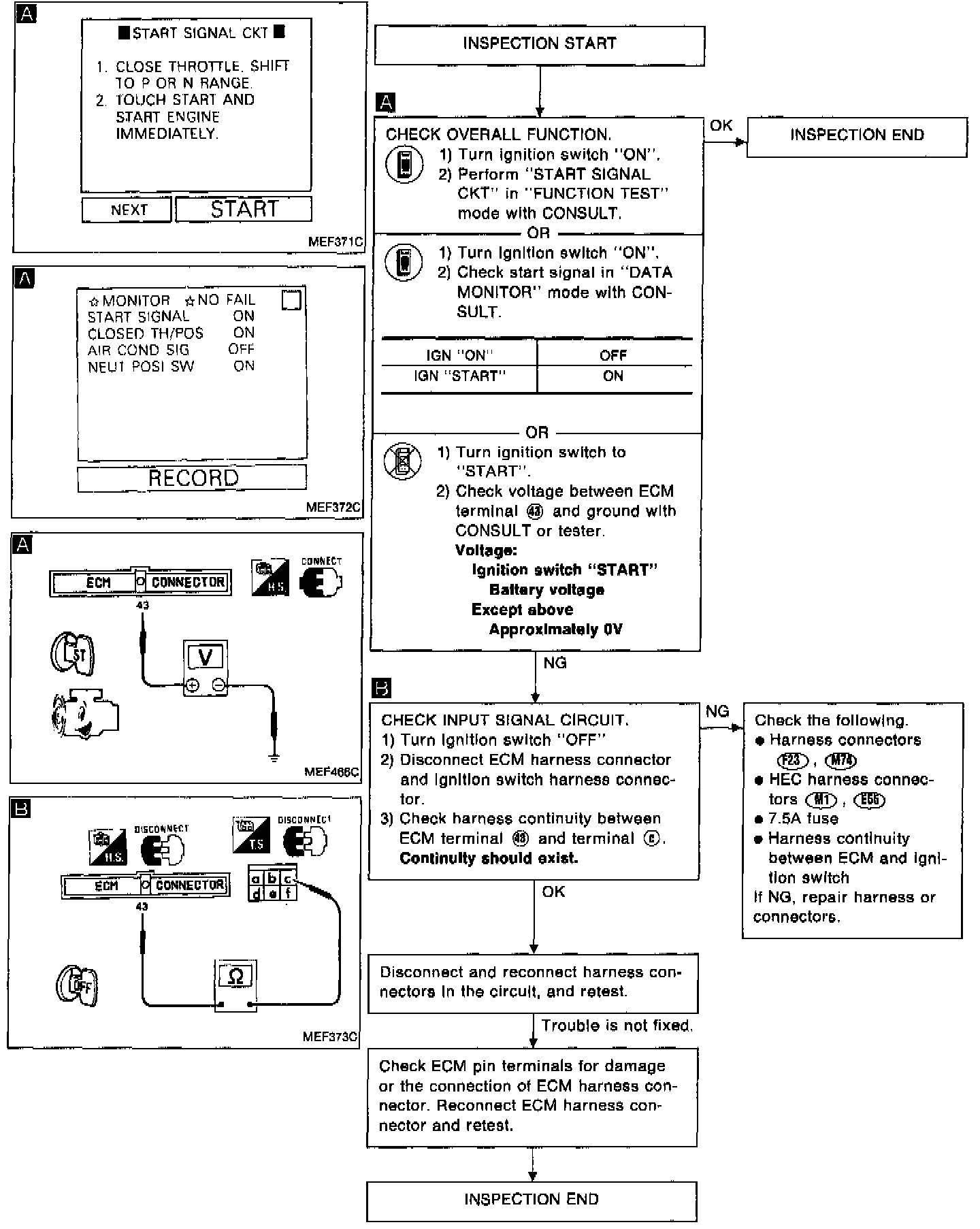

DIAGNOSTIC CHART

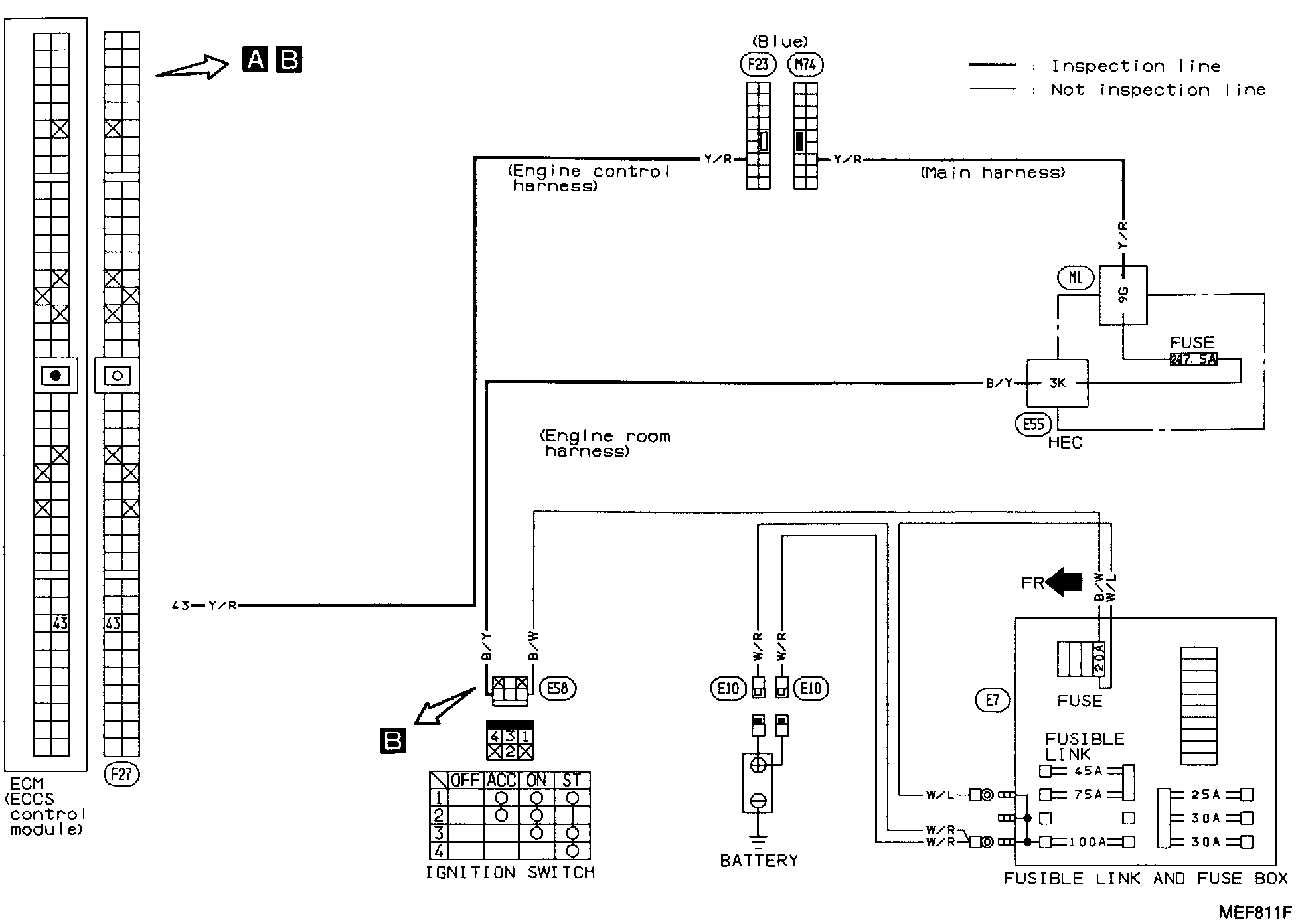

Circuit Diagram:
CIRCUIT DIAGRAM

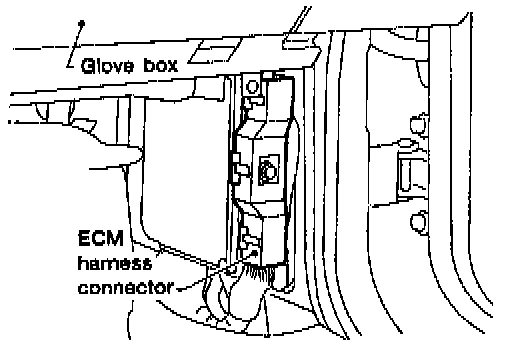

HARNESS LAYOUT
