Closed Throttle Position Switch

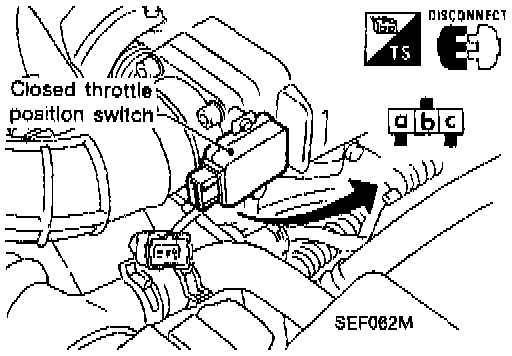

Closed Throttle Position Switch (Hard Idle Position):
1.
Disconnect
closed throttle position switch harness connector.
2.
Check continuity between terminals
A and
B.
Accelerator pedal condition Continuity Released
Yes
Depressed
No
If Not Good, replace
closed throttle position switch. Refer to service and repair.
Service and Repair
