Component Locations

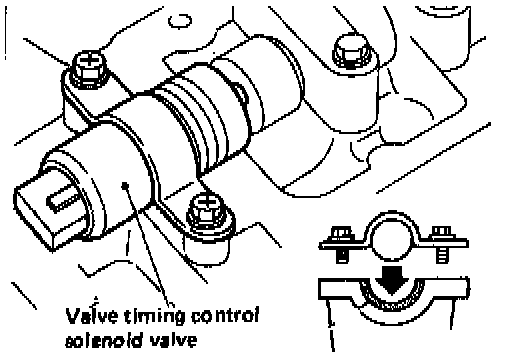

Valve Timing Control Solenoid Location:

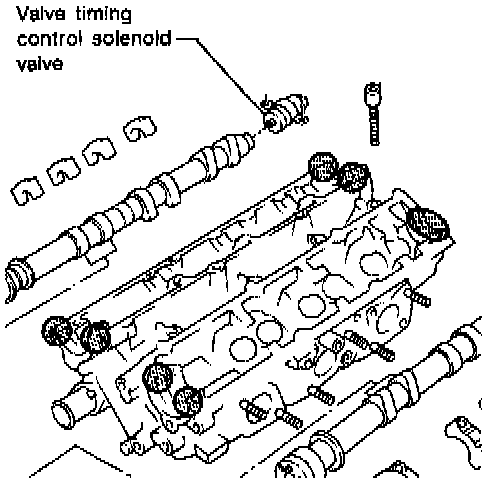

Valve Timing Control Solenoid Location:

The two Variable Valve Timing Control (VTC) Solenoids are mounted one per cylinder head at the back of the engine.
