Exhaust Gas Recirculation: Description and Operation

PURPOSE
The Exhaust Gas Recirculation (EGR) System controls the formation of Oxides of Nitrogen (NOx) emissions by recirculating some of the exhaust gases into the combustion chamber. The exhaust gas in the combustion chamber lowers the peak ignition temperature.

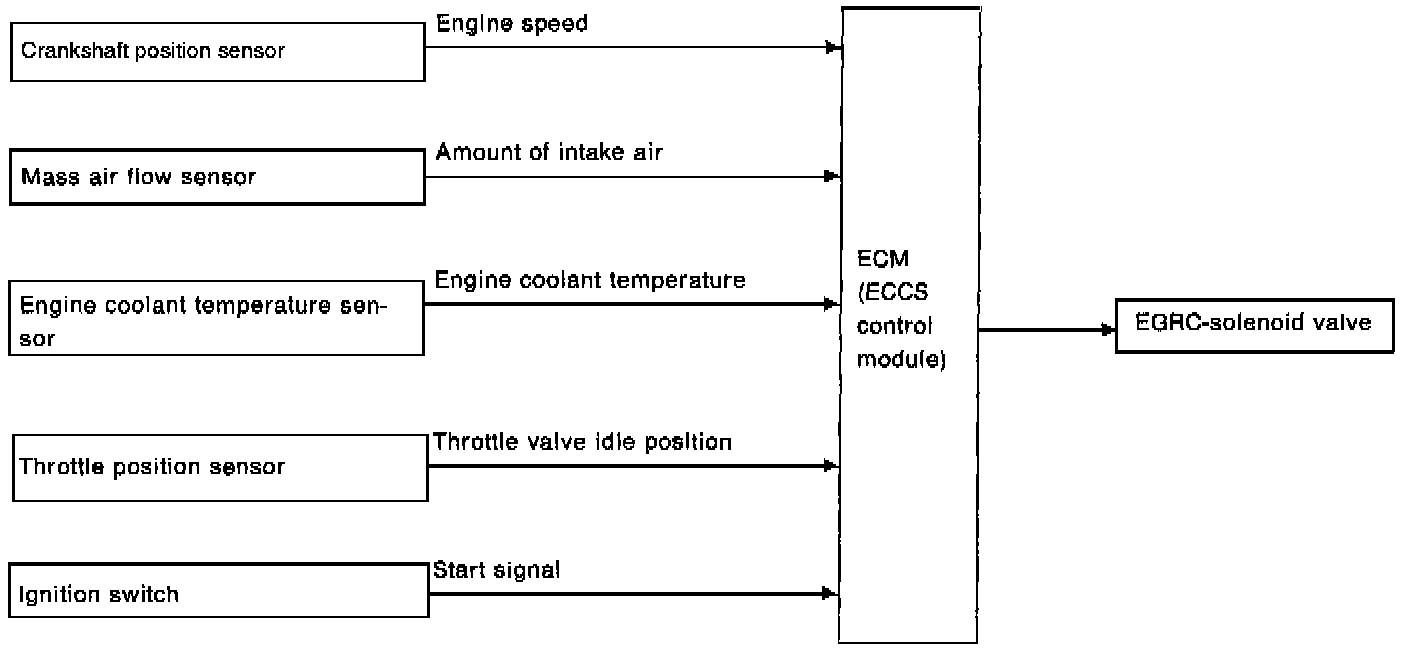

Exhaust Gas Recirculation (EGR) System Input/Output:

Vacuum Solenoid:

OPERATION
The EGR valve is controlled by the Engine Control Module (ECM)through the EGR solenoid.

If the ECM senses:
- Low engine coolant temperature
- Excessively high coolant temperature
- High engine speed
- Engine idling
it energizes the EGR Control Solenoid. An energized solenoid will vent the vacuum signal and NOT allow EGR operation.

If the ECM senses any condition other than above, the EGR Solenoid will be de-energized and allow vacuum to pass.
