EGR Temperature Sensor: Testing and Inspection

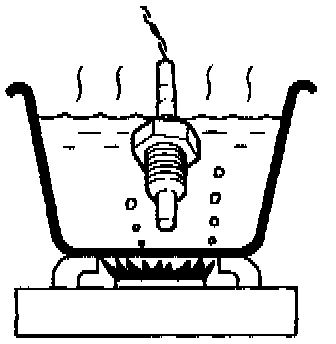

EGR Temperature Sensor Test:
Check resistance change and resistance value at
1OO°C (212°F).
Resistance should decrease in response to temperature increase.
Resistance: At
1OO°C (212°F)..85.3 ± 8.53 K Ohms If Not Good, replace Exhaust Gas Recirculation
(EGR) temperature sensor.
