W/ Direct Ignition Adapter

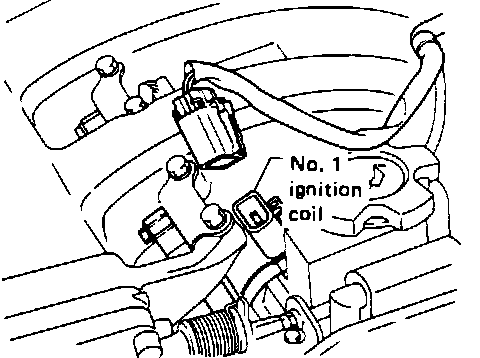

#1 Ignition Coil Terminal:

1. Disconnect the #1 ignition coil terminal.

Direct Ignition Adapter Connection:

2. Connect adapter harness (Kent-Moore #J-38386 or equivalent) between ignition coil and engine harness.

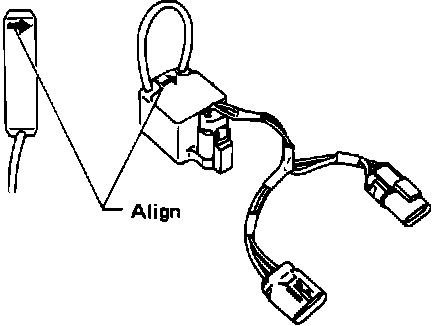

3. Connect trigger unit (Kent-Moore #J-36777-1 or equivalent) to adapter harness.

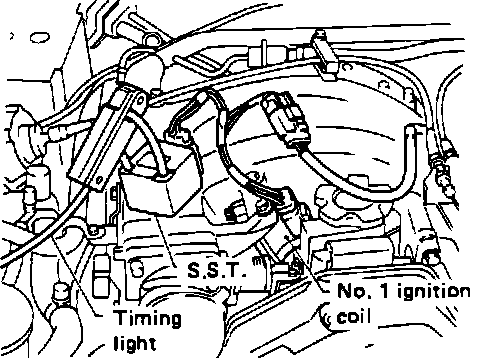

Timing Light Connections:

4. Connect timing light to trigger loop, noting proper direction if relative to timing light operation.
