A/T Control Unit

INSPECTION OF A/T CONTROL UNIT

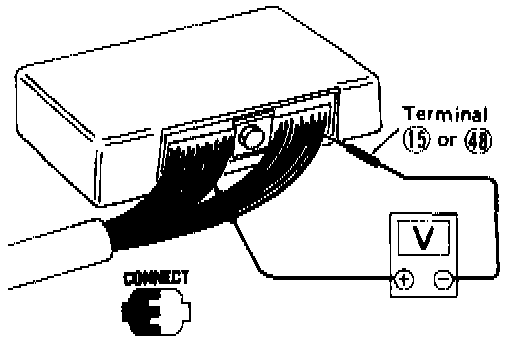

- Measure voltage between each terminal and terminal (15) or (48) by following "A/T CONTROL UNIT INSPECTION TABLE".

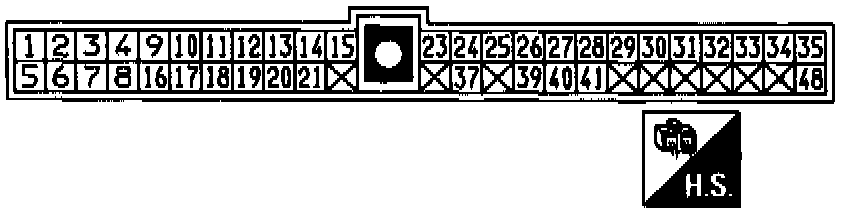

- Pin connector terminal layout.

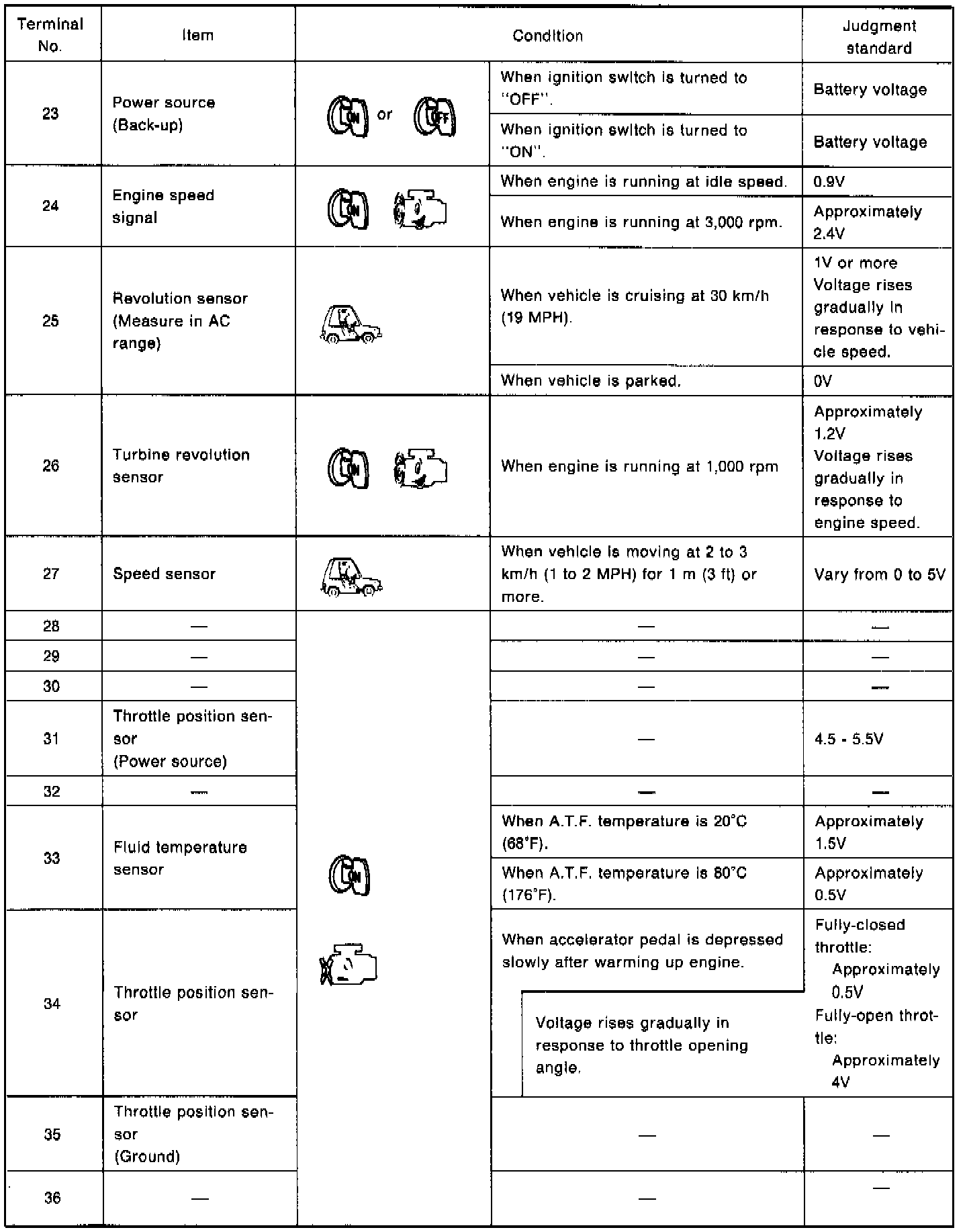

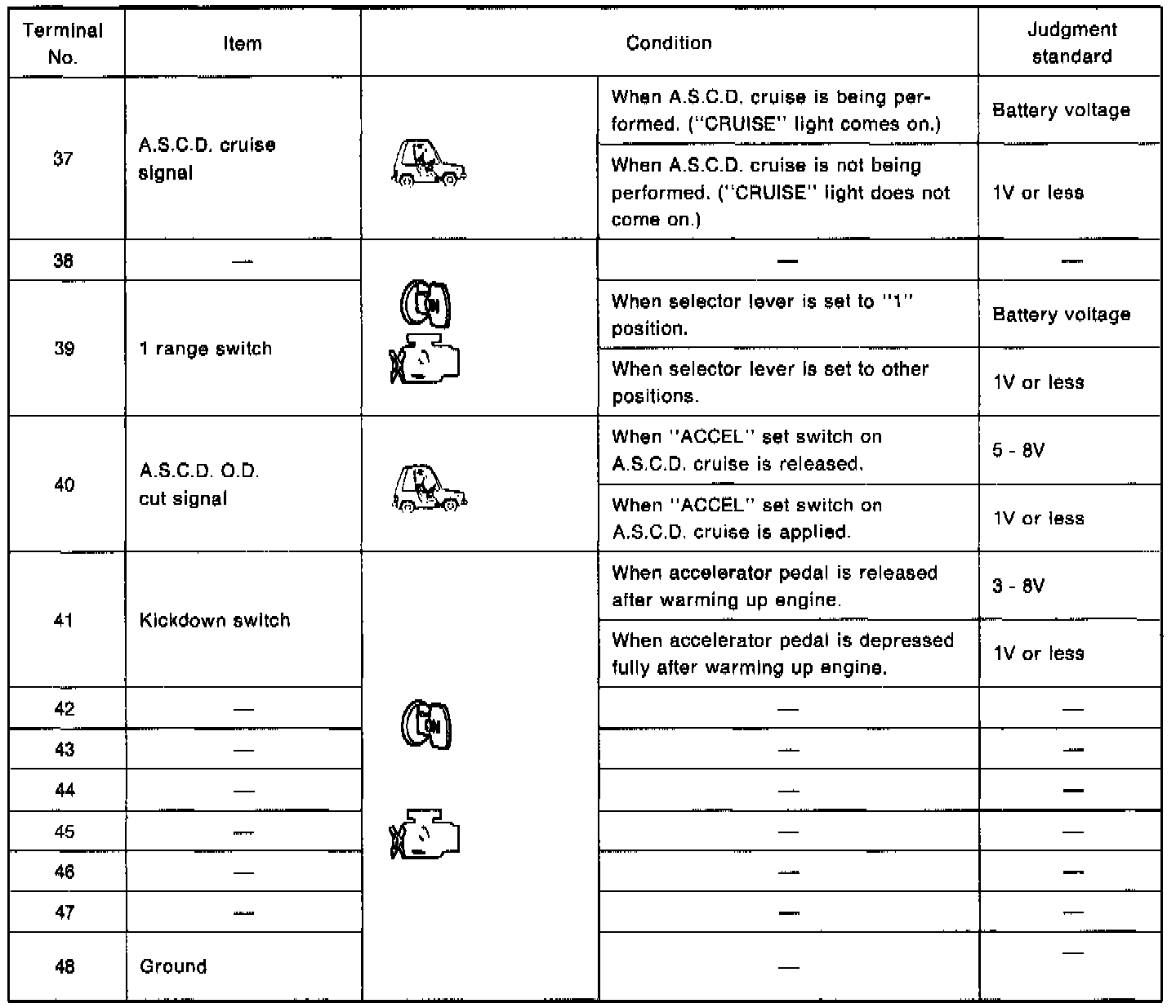

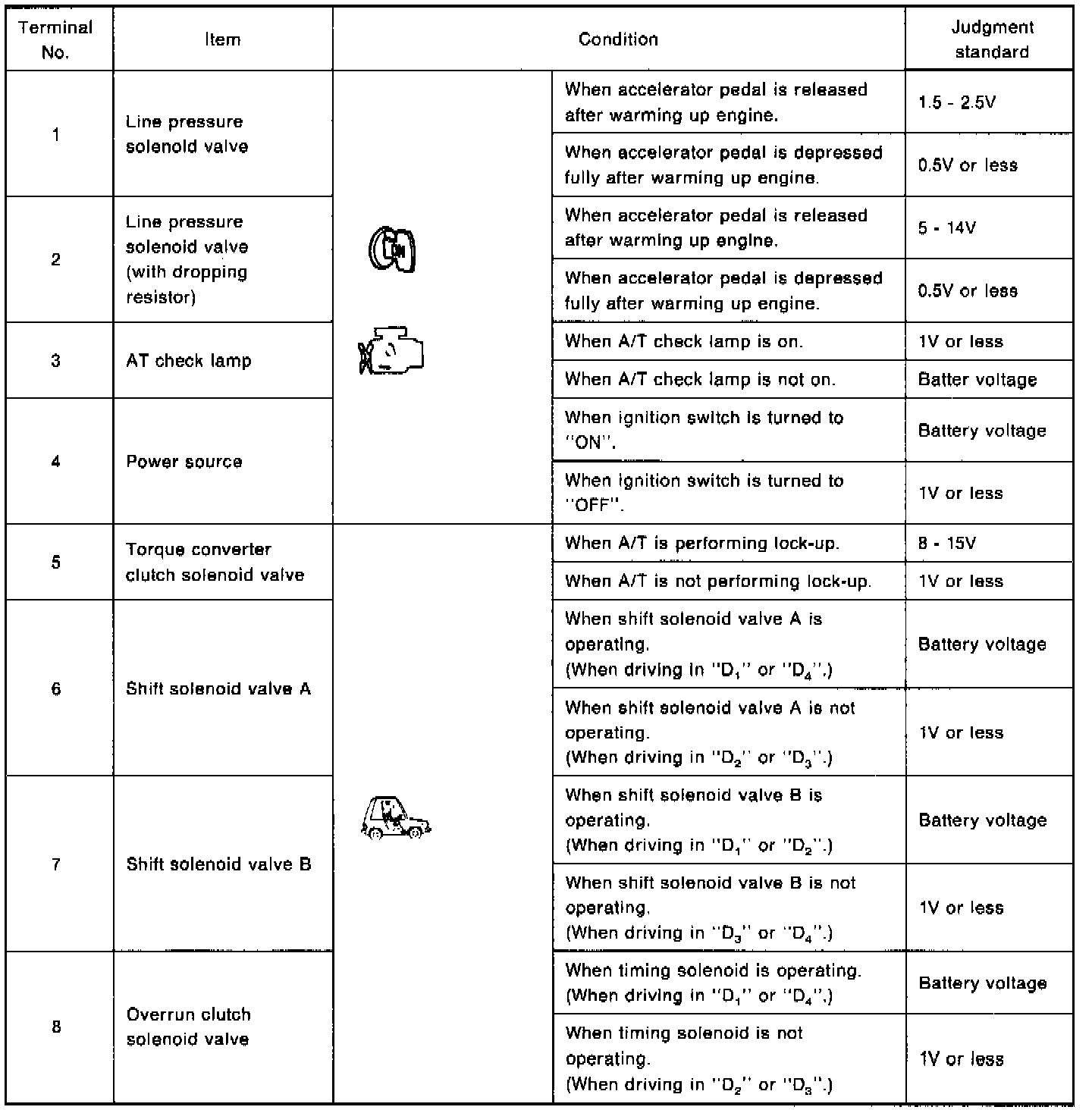

A/T CONTROL UNIT INSPECTION TABLE
NOTE: Data are reference values
