A/T Fluid Condition Check
A/T FLUID CHECK 1.

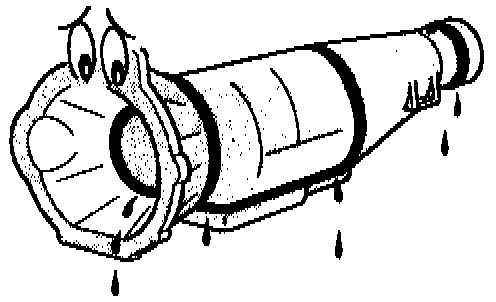

Clean area suspected of leaking, - for example, mating surface of converter housing and transmission case.
2.

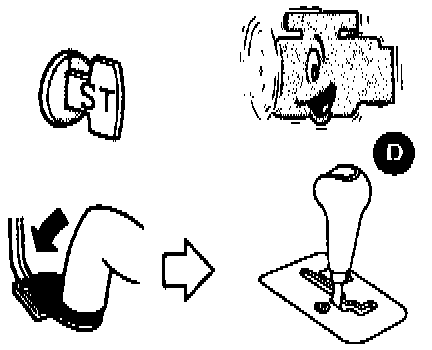

Start engine, apply foot brake, place selector lever in "D" position and wait a few minutes.
3.
Stop engine.
4.
Check for fresh leakage.
FLUID CONDITION CHECK
