Neutral Safety Switch: Service and Repair

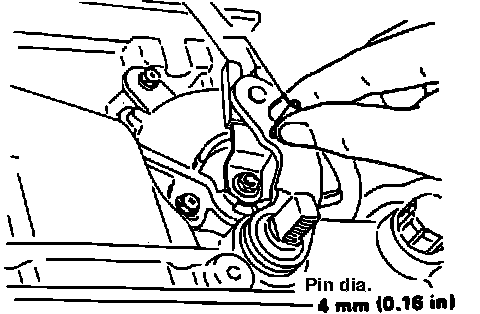

Fig. 2 Adjusting Inhibitor Switch.:
1.
Remove manual control linkage from manual shaft.
2.
Set manual shaft in Neutral position.
3.
Loosen
inhibitor switch fixing bolts.
4.
Insert suitable pin
(4 mm 0.16 in) into adjustment holes in both
inhibitor switch and manual shaft as near vertical as possible, then tighten screws,
Fig. 2. 5.
Check switch for continuity, replacing as necessary.
