MIT72985A Starter

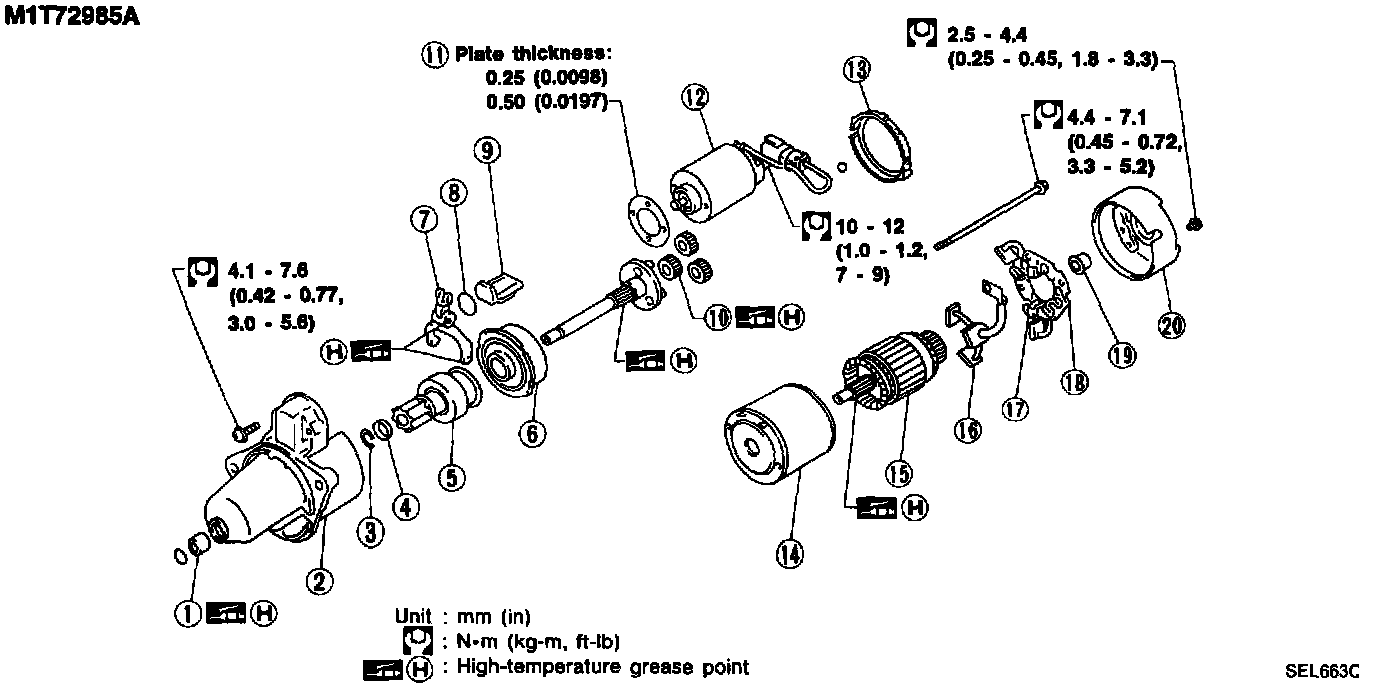

Starting System: Construction (M1T72985A):

1. Sleeve bearing
2. Gear case
3. Stopper clip
4. Pinion stopper
5. Pinion assembly
6. Internal gear
7. Shift lever
8. Plate
9. Packing
10. Planetary gear
11. Adjusting plate
12. Magnetic switch assembly
13. Packing
14. Yoke
15. Armature
16. Bearing
17. Brush +
18. Brush spring
19. Brush holder
20. Rear cover
