Air Conditioner Cut Control System

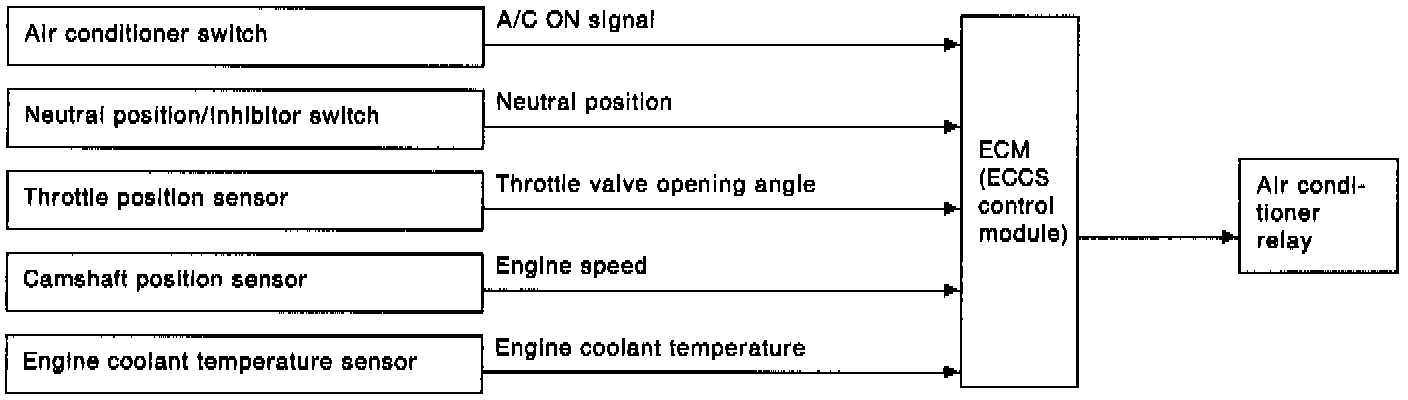

Air Conditioner Cut Control Chart:
PURPOSE This system improves acceleration when the air conditioner is used.
OPERATION When the
accelerator pedal is fully depressed, the air conditioner is turned off for a few seconds. When engine coolant temperature becomes excessively high, the air conditioner is turned off. This continues until the coolant temperature becomes normal again.
